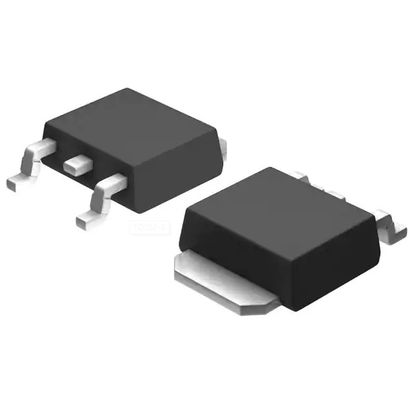

BD750L5FP-CE2 5v Linear Regulator Ic ROHM Semiconductor 1 Output 500mA TO-252
| Place of Origin | Japan |
|---|---|
| Brand Name | Rohm Semiconductor |
| Certification | RoHS |
| Model Number | BD750L5FP-CE2 |
| Minimum Order Quantity | 2000 PCS |
| Price | Negotiable |
| Packaging Details | 2000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 16K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | BD750L5FP-CE2 | Category | Voltage Regulators - Linear |
|---|---|---|---|
| Manufacturer | Rohm Semiconductor | Output Configuration | Positive |
| Output Type | Fixed | Number Of Regulators | 1 |
| Voltage - Input (Max) | 45V | Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.5V @ 200mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 µA | Current - Supply (Max) | 15 µA |
| PSRR | 60dB (120Hz) | Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | ||
| High Light | BD750L5FP-CE2,ROHM Semiconductor,linear 5v regulator |
||
Product Description
BD750L5FP-CE2 Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252
Datasheet:BD750L5FP-CE2
| Category | Voltage Regulators - Linear |
| Mfr | Rohm Semiconductor |
| Series | Automotive, AEC-Q100 |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.5V @ 200mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 µA |
| Current - Supply (Max) | 15 µA |
| PSRR | 60dB (120Hz) |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
| Base Product Number | BD750 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | BD750L5FP-CE2TR |
| BD750L5FP-CE2CT | |
| BD750L5FP-CE2DKR | |
| Standard Package | 2000 |
General Description
The BD7xxL5FP-C are low quiescent regulators featuring 50V absolute maximum voltage, and output voltage accuracy of ±2%, 500mA output current and 6μA (Typ.) current consumption. There regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, these ICs also feature overcurrent protection to protect the device from damage caused by short-circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions.
Features
Ultra low quiescent current: 6.0μA (Typ.)
Output current capability: 500mA
Output voltage: 3.3 V or 5.0 V(Typ.)
High output voltage accuracy: ±2%
Low saturation voltage by using PMOS output transistor
Integrated overcurrent protection to protect the IC from damage caused by output short-circuiting.
Integrated thermal shutdown to protect the IC from overheating at overload conditions.
Low ESR ceramic capacitor can be used as output capacitor.
TO252-3 package
Key specifications
Ultra low quiescent current: 6μA (Typ.)
Output voltage: 3.3V / 5.0V (Typ.)
Output current capability: 500mA
High output voltage accuracy: ±2%
Low ESR ceramic capacitor can be used as output capacitor
AEC-Q100 Qualified
Data Picture:https://fscdn.rohm.com/en/products/databook/datasheet/ic/power/linear_regulator/bd7xxl5fp-c-e.pdf
