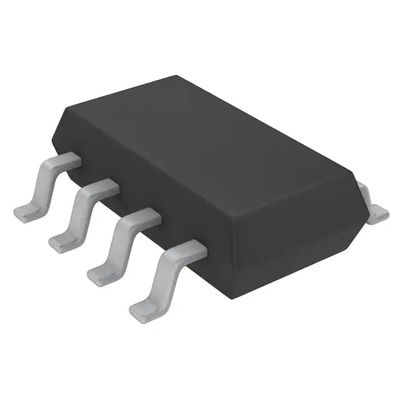

MP1495SGJ-Z Monolithic Power Systems MPS Buck Switching Regulator IC 0.8V 1 Output 3A SOT-23-8 Thin TSOT-23-8

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP1495SGJ-Z
Minimum Order Quantity 3000PCS
Price Negotiable
Packaging Details 3000PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 6K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems (MPS) Category Voltage Regulators - DC DC Switching Regulators
Product Number MP1495SGJ-Z Number Of Outputs 1
Output Configuration Positive Voltage - Input (Min) 4.5V
Voltage - Input (Max) 16V Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 15.2V Current - Output 3A
Frequency - Switching 500KHz Operating Temperature -40°C ~ 125°C (TJ)
Package / Case SOT-23-8 Thin, TSOT-23-8
High Light

MP1495SGJ-Z

,

Buck Switching Regulator IC

,

Monolithic Power Systems MPS

Leave a Message
Product Description

Datasheet:MP1495SGJ-Z

Category Voltage Regulators - DC DC Switching Regulators
Mfr Monolithic Power Systems Inc.
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 16V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 15.2V
Current - Output 3A
Frequency - Switching 500kHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-8 Thin, TSOT-23-8
Supplier Device Package TSOT-23-8
Base Product Number MP1495



Additional Resources:



ATTRIBUTE DESCRIPTION
Other Names 1589-1849-2
  1589-1849-1
  1589-1849-6
  1589-1849-ND
  1589-1849
Standard Package 3000



DESCRIPTION

The MP1495S is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MP1495S has synchronous mode operation for higher efficiency over the output current load range.



Current-mode operation provides fast transient response and eases loop stabilization.



Full protection features include over-current protection and thermal shut down.



The MP1495S requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package



FEATURES

 Wide 4.5V-to-16V Operating Input Range

 120mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs

 High-Efficiency Synchronous Mode Operation

 Fixed 500kHz Switching Frequency

 Synchronizes to a 300kHz to 2MHz External Clock

 AAM Power-Save Mode

 Internal Soft-Start

 OCP Protection and Hiccup

 Thermal Shutdown

 Output Adjustable from 0.8V

 Available in an 8-pin TSOT-23 package



APPLICATIONS

 Notebook Systems and I/O Power

 Digital Set-Top Boxes

 Flat-Panel Television and Monitors

 Distributed Power Systems

DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP1495SGJ-Z/document_id/811/
