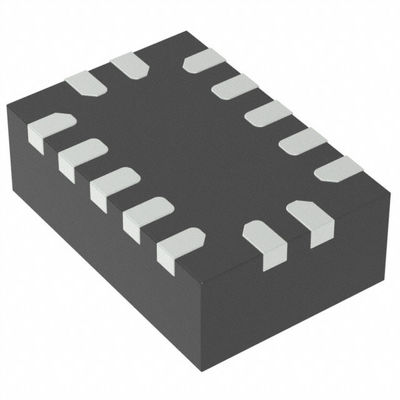

MP8847GD-Z IC Power Management Chip For Mobile Buck Regulator Ic 0.6V 1 Output 6A 14-VFQFN

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP8847GD-Z
Minimum Order Quantity 5000PCS
Price Negotiable
Packaging Details 5000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 85K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems (MPS) Category Voltage Regulators - DC DC Switching Regulators
Product Number MP8847GD-Z Output Type Adjustable
Number Of Outputs 1 Input Voltage-Max 6V
Input Voltage-Min 2.7V Output Oltage-Max 1.23V
Output Voltage-Min 0.6V Operating Temperature -40°C ~ 125°C
Current - Output (Max) 6A Frequency - Switching 1.25MHz
Supplier Device Package 14-QFN (2x3)
High Light

MP8847GD-Z

,

IC Power Management Chip for Mobile

,

buck regulator ic

Leave a Message
Product Description

Datasheet:MP8847GD-Z


TYPE
DESCRIPTION
Category
Voltage Regulators - DC DC Switching Regulators
Mfr
Monolithic Power Systems Inc.
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Voltage - Input (Min)
2.7V
Voltage - Input (Max)
6V
Voltage - Output (Min/Fixed)
0.6V
Voltage - Output (Max)
1.23V
Current - Output
6A
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
21-PowerVFQFN
Supplier Device Package
21-QFN (3x4)
Base Product Number
MPQ8847


Additional Resources:

ATTRIBUTEDESCRIPTION
Standard Package5000


DESCRIPTION

The MP8847 is a highly integrated, highfrequency, synchronous, step-down switcher with an I2C control interface. The MP8847 can support up to 6A of load current over an input supply range from 2.7V to 6V with excellent load and line regulation.

Constant-frequency hysteretic mode provides an extremely fast transient response without loop compensation to achieve high efficiency easily under light-load condition. The output voltage level can be controlled onthe-fly through a 3.4Mbps I2C serial interface.

The voltage range can be adjusted from 0.6V to 1.235V in 5mV steps. The voltage slew rate, switching frequency, and power-saving mode are also selectable through the I2C interface.

Full protection features include internal soft start, over-current protection (OCP), and overtemperature protection (OTP).

The MP8847 requires a minimal number of readily available, standard, external components and is available in a compact QFN-14(2mmx3mm) package.

FEATURES
 I2C-Programmable Output Range from 0.6V to 1.235V in 5mV Steps
 2.7V to 6V Input Voltage Range
 Up to 6A Load Current
 Internal 35mΩ High-Side and 15mΩ LowSide Power MOSFETs
 I2C-Compatible Interface up to 3.4Mbps
 Factory Adjustable Switching Frequency from 0.85MHz to 2.2MHz
 Power-Saving Mode Selectable via I2C
 Internal 1ms Soft Start
 Power Good Indicator
 Current Overload and Thermal Shutdown Protection
 Available in 2mmx3mm QFN-14 Package

APPLICATIONS
 Processor Core Supplies
 Micro Converters
DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP8847/document_id/3791/
