MP3422GG-Z Step Up Voltage Regulator Ic 2.5V 1 Output 6.5A Switch 14-PowerVFQFN

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP3422GG-Z
Minimum Order Quantity 5000PCS
Price Negotiable
Packaging Details 5000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 70K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems (MPS) Category Voltage Regulators - DC DC Switching Regulators
Product Number MP3422GG-Z Number Of Outputs 1
Voltage - Input (Min) 1.9V Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 2.5V Voltage - Output (Max) 5.5V
Current - Output 6.5A(Switch) Frequency - Switching 600kHz
Operating Temperature -40°C ~ 125°C (TJ) Package / Case 14-PowerVFQFN
High Light

MP3422GG-Z

,

step up voltage regulator ic

,

step up regulator ic

Leave a Message
Product Description

MP3422GG-Z Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 6.5A (Switch) 14-PowerVFQFN
Features:
• Up to 98% Efficiency
• 1.9V to 5.5V Input Range
• 2.5V to 5.5V Output Range
• Internal Synchronous Rectifier
• 600kHz Fixed Switching Frequency
• >6.5A Switch Current Limit Capability
• 43uA Quiescent Current
• High Efficiency over Full Load Range
• Internal Soft-start and Compensation
• True Output Load Disconnect from Input
• OCP, SCP, OVP and OTP Protection
• Small 2x2mm QFN14 Package

Description:

The MP3422 is a high-efficiency, synchronous, current–mode, step-up converter with output disconnect


The MP3422 starts up from an input voltage as low as 1.9V, while providing inrush current limiting and output short-circuit protection. The integrated P-channel synchronous rectifier improves efficiency and eliminates the need for an external Schottky diode. This P-channel disconnects the output from the input during shutdown.

The 600kHz switching frequency allows small external components, while the internal compensation and soft-start minimize external component count. The MP3422 provides a compact solution for a 5V output, 2.5A load requirement, using a supply voltage down to 2.8V.

The MP3422 is available in 14-pin QFN 2mmx2mm package.
Quick Detail:


Product Attributes:


TYPE
DESCRIPTION
Category
Voltage Regulators - DC DC Switching Regulators
Mfr
Monolithic Power Systems Inc.
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Voltage - Input (Min)1.9V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)5.5V
Current - Output
6.5A
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
14-PowerVFQFN
Supplier Device Package
14-QFN (2x2)
Base Product Number
MP3422


Additional Resources:

ATTRIBUTEDESCRIPTION
Other Names1589-1641-2
 1589-1641-1
 MP3422GG-Z-ND
 1589-1641-6
Standard Package5000

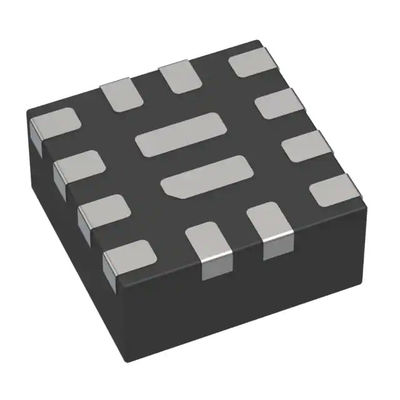

Data Picture:
