MPQ2143DJ-AEC1-LF-Z Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-23-8
| Place of Origin | Monolithic Power Systems Inc. |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MPQ2143DJ-AEC1-LF-Z |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 20K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | MPQ2143DJ-AEC1-LF-Z | Manufacturer | Monolithic Power Systems Inc. |
|---|---|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators | Output Type | Positive |
| Number Of Outputs | 1 | Input Voltage-Max | 5.5V |
| Input Voltage-Min | 2.5V | Output Voltage-Max | 5V |
| Output Voltage-Min | 0.6V | Output Current | 3A |
| Topology | BUCK | Switching Frequency | 1.2MHz |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 | Supplier Device Package | TSOT-23-8 |
| High Light | MPQ2143DJ-AEC1-LF-Z,Buck Switching Regulator IC Positive |
||
Product Description

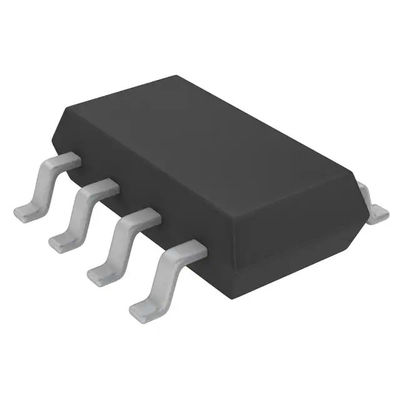

MPQ2143DJ-AEC1-LF-Z Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-23-8
Quick Detail:
|
Manufacturer
|
Monolithic Power Systems Inc.
|
|
Manufacturer Product Number
|
MPQ2143DJ-AEC1-LF-Z
|
|
Description
|
IC REG BUCK ADJ 3A TSOT23-8
|
|
Detailed Description
|
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-23-8 Thin, TSOT-23-8
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.5V
|
|
Voltage - Input (Max)
|
5.5V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
|
Voltage - Output (Max)
|
5V
|
|
Current - Output
|
3A
|
|
Frequency - Switching
|
1.2MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOT-23-8 Thin, TSOT-23-8
|
|
Supplier Device Package
|
TSOT-23-8
|
|
Base Product Number
|
MPQ2143
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
1589-1782-2
|
|
1589-1782-1
|
|
|
1589-1782-6
|
|
|
MPQ2143DJ-AEC1-LF-Z-ND
|
|
| Standard Package | 3000 |
Description:
The MPQ2143 is a monolithic, step-down, switch-mode converter with internal power MOSFETs. It can achieve up to 3A continuous output current from a 2.5V–to-5.5V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V.
Constant-on-time control provides fast transient response and eases loop stabilization. Faultcondition protections include cycle-by-cycle current limiting and thermal shutdown.
The MPQ2143 is available in small TSOT23-8 package and requires only a minimal number of readily-available standard external components.
The MPQ2143 is ideal for a wide range of applications including high-performance DSPs, FPGAs, smartphones, portable instruments, and DVD drivers.
FEATURES
• Guaranteed Industrial/Automotive Temp
• Wide 2.5V-to-5.5V Operating Input Range
• Output Voltage as Low as 0.6V
• 100% Duty Cycle in Dropout
• Up to 3A Output Current
• Low IQ: 40µA
• 80mΩ and 40mΩ Internal Power MOSFET Switches
• Default 1.2MHz Switching Frequency
• EN and Power-Good for Power Sequencing
• Cycle-by-Cycle Over-Current Protection
• Auto Discharge at Power Off
• Short-Circuit Protect with Hiccup Mode
• Stable with Low-ESR Output Ceramic Capacitors
• Available in a TSOT23-8 Package
• Available in AEC-Q100 Grade 1
APPLICATIONS
• Low Voltage I/O System Power
• Handheld/Battery-powered Systems
• Wireless/Networking Cards
