ISL91127IRAZ-T Buck Boost Switching Regulator IC 1V 1 Output 2A Power IC Chip

Place of Origin Japan
Brand Name Renesas Electronics America Inc
Certification RoHS
Model Number ISL91127IRAZ-T
Minimum Order Quantity 6000 PCS
Price Negotiable
Packaging Details 6000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 18K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number ISL91127IRAZ-T Category Voltage Regulators - DC DC Switching Regulators
Frequency - Switching 2.5MHz Synchronous Rectifier Yes
Manufacturer Renesas Electronics America Inc Operating Temperature -40°C ~ 85°C (TA)
Function Step-Up, Step-Down Mounting Type Surface Mount
Output Configuration Positive Package / Case 20-VFQFN Exposed Pad
Topology Buck-Boost Base Product Number ISL91127
Output Type Adjustable (Fixed) Number Of Outputs 1
Voltage - Input (Min) 1.8V Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1V Voltage - Output (Max) 5.2V
Current - Output 2A
High Light

ISL91127IRAZ-T

,

1V Power IC Chip

,

2A Power IC Chip

Leave a Message
Product Description
ISL91127IRAZ-T Buck-Boost Switching Regulator IC Positive Adjustable (Fixed) 1V 1 Output 2A 20-VFQFN Exposed Pad
Datasheet:ISL91127IRAZ-T
Category Voltage Regulators - DC DC Switching Regulators
Mfr Renesas Electronics America Inc
Product Status Active
Function Step-Up, Step-Down
Output Configuration Positive
Topology Buck-Boost
Output Type Adjustable (Fixed)
Voltage - Input (Min) 1.8V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 5.2V
Current - Output 2A
Frequency - Switching 2.5MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 20-VFQFN Exposed Pad
Supplier Device Package 20-QFN (4x4)
Base Product Number ISL91127



The ISL91127IR is a high-current buck-boost switching regulator for systems using new battery chemistries. It uses Renesas’ proprietary buck-boost algorithm to maintain voltage regulation while providing excellent efficiency and very low output voltage ripple when the input voltage is close to the output voltage.



The ISL91127IR is capable of delivering at least 2A continuous output current (VOUT = 3.3V) over a battery voltage range of 2.5V to 4.35V. This maximizes the energy utilization of advanced single-cell Li-ion battery chemistries that have significant capacity left at voltages below the system voltage. Its fully synchronous low ON-resistance, 4-switch architecture and a low quiescent current of only 30µA optimize efficiency under all load conditions.



The ISL91127IR supports stand-alone applications with a fixed 3.3V or 3.5V output voltage or adjustable output voltage with an external resistor divider. Output voltages as low as 1.0V or as high as 5.2V are supported.

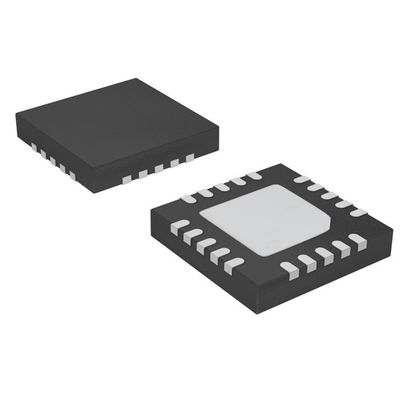

The ISL91127IR is available in a 20 Ld, 0.5mm pitch QFN (4mmx4mm) package. The 2.5MHz switching frequency further reduces the size of external components.



Features

• Accepts input voltages above or below regulated output voltage

• Automatic and seamless transitions between buck and boost modes

• Input voltage range: 1.8V to 5.5V

• Output current: up to 2A (PVIN = 2.5V, VOUT = 3.3V)

• High efficiency: up to 96%

• 30µA quiescent current maximizes light-load efficiency

• 2.5MHz switching frequency minimizes external component size

• Fully protected for short-circuit, over-temperature and undervoltage

• 20 Ld 4mmx4mm QFN package



Applications

• Handheld and battery powered consumer and medical devices

• Brownout free system voltage for smartphones and tablet PCs

• Wireless communication devices

• 2G/3G/4G RF power amplifiers
