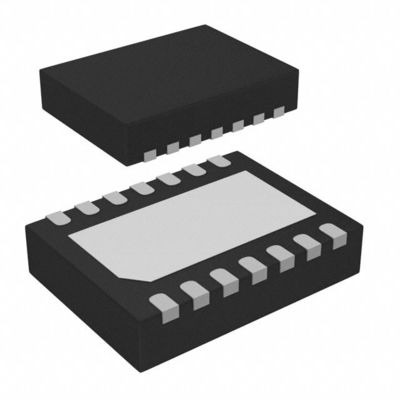

MP8869SGL-Z Switch Mode Regulator Ic 0.6V 1 Output 12A 14-VFDFN Exposed Pad Power IC Chip

MP8869SGL-Z Buck Switching Regulator IC Positive Programmable 0.6V 1 Output 12A 14-VFDFN Exposed Pad

Datasheet:MP8869SGL-Z



Additional Resources:

DESCRIPTION
The MP8869S is a high-frequency, synchronous, rectified, step-down, switch-mode converter with an I2C control interface. The MP8869S offers a fully integrated solution that achieves 12A of continuous current and 15A of peak output current with excellent load and line regulation over a wide input supply range.
The output voltage level can be controlled onthe-fly through an I2C serial interface. The reference voltage range can be adjusted from 0.6V to 1.108V in 4mV steps. The voltage slew rate, frequency, current limit, hiccup/latch-off protection, enable, and power-saving mode are also selectable through the I2C interface.
Constant-on-time (COT) control operation provides fast transient response. An open-drain power good (PG) pin indicates when the output voltage is in the nominal range. Full protection features include over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown.
The MP8869S is available in a QFN-14 (3mmx4mm) package.
FEATURES
 Vout Adjustable up to 5.5V using FB pin
 Wide 2.85V to 18V Operating Input Range
 12A Continuous/15A Peak Output Current
 1% Internal Reference Accuracy
 I2C-Programmable Reference Range from 0.6V to 1.108V in 4mV Steps with Slew Rate Control
 5% Accuracy Output Voltage and Output Current Monitoring via I2C
 Selectable PFM/PWM Mode, Adjustable Frequency and Current Limit through I2C
 Four Different Selectable I2C Addresses
 External Soft Start (SS)
 Open-Drain Power Good (PG) Indication
 Output Over-Voltage Protection (OVP)
 Hiccup/Latch-Off Over-Current Protection (OCP)
 Available in a QFN-14 (3mmx4mm) Package
Data Picture:
