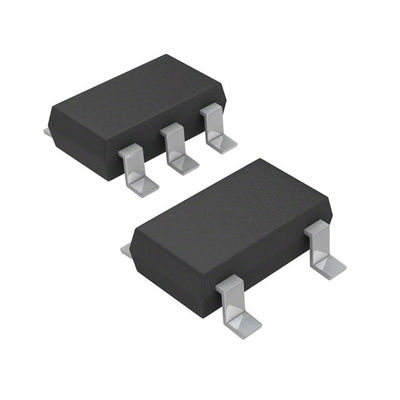

MP3410DJ-LF-Z Boost Switching Voltage Regulator Ic 2.5V 1 Output 1.3A Switch SOT-23-5 Thin, TSOT-23-5
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP3410DJ-LF-Z |
| Minimum Order Quantity | 3000PCS |
| Price | Negotiable |
| Packaging Details | 3000PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 27K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP3410DJ-LF-Z | Number Of Outputs | 1 |
| Output Configuration | Positive | Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 6V | Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | 6V | Current - Output | 1.3A |
| Frequency - Switching | 550kHz | Operating Temperature | -40°C ~ 85°C (TJ) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | ||
| High Light | MP3410DJ-LF-Z,switching voltage regulator ic,MP3410DJ-LF-Z MPS |
||
Product Description
MP3410DJ-LF-Z Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 1.3A (Switch) SOT-23-5 Thin, TSOT-23-5
Features:
• Over 90% Efficiency
• Output to Input Disconnect at Shutdown Mode
• Internal Synchronous Rectifier
• Inrush Current Limiting and Internal Soft-Start
• Internal Compensation
• 1.3A Typical Switch Current Limit
• 550kHz Fixed Switching Frequency
• Zero Current Shutdown Mode
• Thermal Shutdown
• 5-Pin TSOT-23 Package
Description:
The MP3410 is a highly efficient, synchronous, fixed frequency, current-mode step-up converter with output to input disconnect, inrush current limiting and internal soft-start. It includes an error amplifier, ramp generator, comparator, N-Channel switch and P-Channel synchronous rectified switch (which greatly improves efficiency). The output disconnect feature allows the output to be completely isolated from the input in shutdown mode.
The 550kHz switching frequency allows for smaller external components producing a compact solution for a wide range of load currents. The internal compensation and soft-start minimizes the external component count and limits the inrush current during startup. The MP3410 has integrated power MOSFET which can support up to 6V output and typical 1.3A switch current.
The MP3410 is offered in a thin SOT23-5 package.
Product Attributes:
| Category | Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Monolithic Power Systems Inc. | |
| Product Status | Active | |
| Function | Step-Up | |
| Output Configuration | Positive | |
| Topology | Boost | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 1.8V | |
| Voltage - Input (Max) | 6V | |
| Voltage - Output (Min/Fixed) | 2.5V | |
| Voltage - Output (Max) | 6V | |
| Current - Output | 1.3A (Switch) | |
| Frequency - Switching | 550kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | |
| Supplier Device Package | TSOT-23-5 | |
| Base Product Number | MP3410 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1916-ND |
| 1589-1916-6 | |
| 1589-1916-2 | |
| 1589-1916 | |
| 1589-1916-1 | |
| Standard Package | 3000 |
