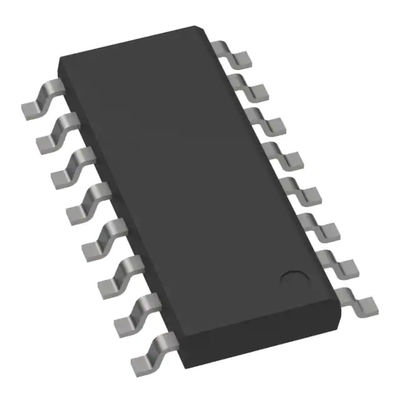

HR1000AGS-Z AC DC Converters Integrated Circuit Offline Half-Bridge Topology Up To 600kHz 16-SOIC
| Place of Origin | Monolithic Power Systems Inc. |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | HR1000AGS-Z |
| Minimum Order Quantity | 2500PCS |
| Price | Negotiable |
| Packaging Details | 2500PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 15K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | AC DC Converters, Offline Switches | Type | DESCRIPTION |
|---|---|---|---|
| Mfr | Monolithic Power Systems Inc. | Product Status | Active |
| Output Isolation | Isolated | Voltage - Supply (Vcc/Vdd) | 13V ~ 15.5V |
| Frequency - Switching | Up To 600kHz | Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | ||
| High Light | HR1000AGS-Z,AC DC Converters Integrated circuit,HR1000AGS-Z 600kHz |
||
Product Description
HR1000AGS-Z Converter Offline Half-Bridge Topology Up to 600kHz 16-SOIC
Quick Detail:
|
Manufacturer
|
Monolithic Power Systems Inc.
|
|
Manufacturer Product Number
|
HR1000AGS-Z
|
|
Description
|
IC OFFLINE SW HALF-BRDG 16SOIC
|
|
Detailed Description
|
Converter Offline Half-Bridge Topology Up to 600kHz 16-SOIC
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
AC DC Converters, Offline Switches
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Product Status
|
Active
|
|
Output Isolation
|
Isolated
|
|
Internal Switch(s)
|
No
|
|
Topology
|
Half-Bridge
|
|
Voltage - Supply (Vcc/Vdd)
|
13V ~ 15.5V
|
|
Duty Cycle
|
0.5
|
|
Frequency - Switching
|
Up to 600kHz
|
|
Fault Protection
|
Over Temperature, Over Voltage
|
|
Control Features
|
Soft Start
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Package / Case
|
16-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
16-SOIC
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
HR1000
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
HR1000AGS-Z-ND
|
|
1589-1512-6
|
|
|
1589-1512-1
|
|
|
1589-1512-2
|
|
| Standard Package | 2500 |
DESCRIPTION
The HR1000A is a controller designed specifically for the resonant half-bridge topology. It provides two drive-signal channels that output complementary signals at a 50% duty cycle. An internal fixed dead-time of 350ns between the two complementary gate signals guarantees zero-voltage switching during the transient and enables high-frequency operation.
The integrated bootstrap diode simplifies the external driving circuit for the high-side switch. It can withstand up to 600V with immunity against high dV/dt noise.
Modulating the switching frequency regulates the topology output voltage. A programmable oscillator can set both the maximum and minimum switching frequencies.
The IC starts up at the programmed maximum switching frequency and gradually slows until the control loop takes over to prevent excessive inrush current
The IC can be forced to enter a controlled burstmode operation at light-load to minimize the power consumption and tighten output regulation.
Protections features—including latched shutdown, auto-recovery, brown-out protection, and overtemperature protection—improve converter design safety without engendering additional circuit complexity.
The IC provide 1.5A/2A source/sink capability for both high-side and low-side gate drivers.
The HR1000A is available in a SO-16 package.
FEATURES
• 50% Duty Cycle, Variable Frequency Control For Resonant Half-Bridge Converter
• 600V High-Side Gate Driver with Integrated Bootstrap Diode and High dV/dt Immunity
• 1.5A/2A Source/Sink Capability for Both High-Side and Low-Side Gate Drivers
• High-Accuracy Oscillator
• Operates at up to 600kHz
• Two-Level Over-Current Protection: Frequency-Shift and Latched Shutdown with Programmable Duration Time
• Remote ON/OFF Control and Brown-Out Protection through the BO Pin
• Latched-Disable Input for Easy Protections Implementation
• Interfaces with PFC Controller
• Programmable Burst-Mode Operation at Light-Load
• Non-Linear Soft-Start for Monotonic Output Voltage Rise
• SO-16 package
APPLICATIONS
• LCD and PDP TVs
• Desktop PCs and Servers
• Telecom SMPS
• AC-DC Adapter, Open-Frame SMPS
• Video Game Consoles
• Electronic Lighting Ballast
