MP020-5GS-Z Buck Boost Converter Chip Offline Flyback Topology 120Hz 75kHz 8-SOIC-7A
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP020-5GS-Z |
| Minimum Order Quantity | 2500PCS |
| Price | Negotiable |
| Packaging Details | 2500PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 100K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems Inc. | Category | AC DC Converters, Offline Switches |
|---|---|---|---|
| Product Number | MP020-5GS-Z | Number Of Outputs | 1 |
| Output Configuration | Positive | Voltage - Breakdown | 700V |
| Voltage - Start Up | 17.3V | Voltage - Supply (Vcc/Vdd) | 6.6V ~ 28V |
| Frequency - Switching | 120Hz ~ 75kHz | Power (Watts) | 8W |
| Operating Temperature | -40°C ~ 125°C (TJ) | Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| High Light | MP020-5GS-Z,buck boost converter chip,AC dc converter chip |
||
Product Description

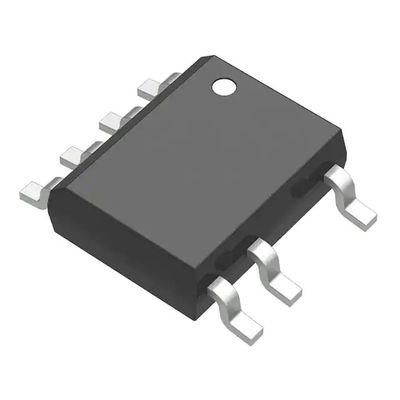

MP020-5GS-Z Converter Offline Flyback Topology 120Hz ~ 75kHz 8-SOIC-7A
Datasheet:MP020-5GS-Z
| Category | AC DC Converters, Offline Switches |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 17.3 V |
| Voltage - Supply (Vcc/Vdd) | 6.6V ~ 28V |
| Frequency - Switching | 120Hz ~ 75kHz |
| Power (Watts) | 8 W |
| Fault Protection | Current Limiting, Open Circuit, Over Load, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7A |
| Mounting Type | Surface Mount |
| Base Product Number | MP020 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 2500 |
DESCRIPTION
The MP020-5 is an offline, primary-side regulator that provides accurate constant voltage and constant current regulation without an opto-coupler or a secondary feedback circuit. It has an integrated 700V MOSFET. The MP020-5's variable off-time control allows a flyback converter to operate in discontinuous conduction mode.
The MP020-5 also features protection functions such as VCC under-voltage lockout, over-current protection, overtemperature protection, open circuit protection (OCkP) and over-voltage protection. Its internal high-voltage start-up current source and powersaving technologies limit the no-load power consumption to less than 30mW.
The MP020-5's variable-switching-frequency technology provides natural spectrum shaping to smooth the EMI signature, making it suitable for offline, low-power battery chargers and adapters.
The MP020-5 is available in SOIC8-7A.
FEATURES
Primary-Side–Control without Opto-Coupler or Secondary Feedback Circuit
Precise Constant Current and Constant Voltage Control (CC/CV)
Integrated 700V MOSFET with Minimal External Components
Variable, Off-Time, Peak-Current Control
550µA High-Voltage Current Source
30mW No-Load Power Consumption
Programmable Cable Compensation
Multiple Protections: OVP, OCP, OCkP, OTP, and VCC UVLO
Natural Spectrum Shaping for Improved EMI Signature
Low Cost and Simple External circuit
SOIC8-7A Package
APPLICATIONS
Cell Phone Chargers
Adapters for Handheld Electronics
Stand-By and Auxiliary Power Supplies
Small Appliances
