MP111DS-LF-Z Ic Semiconductor Chip Electronic Components Storage Capacitor Control IC 8-SOIC

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP111DS-LF-Z
Minimum Order Quantity 2500PCS
Price Negotiable
Packaging Details 2500PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 130K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems (MPS) Category Specialized ICs
Product Number MP111DS-LF-Z Product Status Not For New Designs
Type Storage Capacitor Control IC Applications Cable/DSL/PON Modems
Mounting Type Surface Mount Package / Case 8-SOIC (0.154", 3.90mm Width)
Voltage - Input (Min) 4.5V Voltage - Input (Max) 18V
High Light

MP111DS-LF-Z

,

Ic Semiconductor Chip

,

Semiconductor Chip Electronic

Leave a Message
Product Description

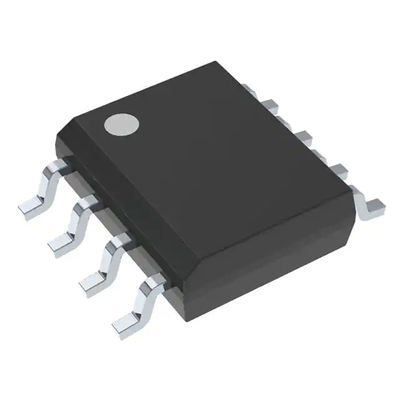

MP111DS-LF-Z Storage Capacitor Control IC 8-SOIC



Datasheet:MP111DS-LF-Z

Product Attribute Attribute Value
Manufacturer: Monolithic Power Systems (MPS)
Product Category: Power Management Specialized - PMIC
Series: MP111
Type: Special Purpose
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Input Voltage Range: 4.5 V to 18 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Input Current: 300 uA
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Application: Modems
Brand: Monolithic Power Systems (MPS)
Input Voltage, Max: 18 V
Input Voltage, Min: 4.5 V
Moisture Sensitive: Yes
Operating Supply Current: 300 uA
Operating Supply Voltage: 4.5 V to 18 V
Pd - Power Dissipation: 1.2 W
Product: PMICs
Product Type: Power Management Specialized - PMIC



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names 1589-MP111DS-LF-ZTR
  1589-1504
  1589-1504-ND
  1589-MP111DS-LF-ZCT
  1589-MP111DS-LF-ZDKR
Standard Package 2500



DESCRIPTION

The MP111 is a dying gasp storage and release controller. It charges storage capacitor from the input during normal operation. Once the storage capacitor is charged to the selected voltage, the charge is stopped, and the storage capacitor is separated from the input. The charging circuit maintains the storage voltage after the charge is completed.



The MP111 keeps monitoring the input voltage, and releases the charge from storage capacitor to input capacitor when the input voltage is lower than the selected release voltage. It regulates the input voltage to keep it close to release voltage for as long as possible.



The MP111 has built-in current limit circuit during the charging up of the storage capacitors. The storage and release voltage can be programmed to user’s desired value by external resistors.



The MP111 comes in an SOIC-8 package and requires a minimum number of readily available standard external components.



FEATURES

 Wide 4.5V to 18V Input Operating Range

 2.5A dumping current from Storage to VIN

 Built-in 250mA Current Limit for Charging Storage Capacitor

 User Programmable Storage and Release Voltage

 Dying Gasp FLAG Indicator

 Available in SOIC-8 package



APPLICATIONS

 Cable/DSL/PON Modems

 Home Gateway

 Access Point Networks

DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/EN/sku/MP111/document_id/1088/
