Infineon TLE4253GSXUMA4 Linear Regulator Chip Circuit 1 Output 250mA PG-DSO-8 Power IC Chip

Place of Origin America
Brand Name INFINEON
Certification RoHS
Model Number TLE4253GSXUMA4
Minimum Order Quantity 2500 PCS
Price Negotiable
Packaging Details 2500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 6K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category Voltage Regulators - Linear Mfr Infineon Technologies
Series Automotive, AEC-Q100 Output Configuration Positive
Output Type Adjustable Number Of Regulators 1
Voltage - Input (Max) 40V Voltage - Output (Min/Fixed) Tracking
Voltage Dropout (Max) 0.6V @ 200mA Current - Output 250mA
Current - Quiescent (Iq) 150 µA Current - Supply (Max) 15 MA
PSRR 60dB (100Hz) Operating Temperature -40°C ~ 150°C
Package / Case 8-SOIC (0.154", 3.90mm Width)
High Light

TLE4253GSXUMA4

,

Infineon TLE4253GSXUMA4

,

linear regulator circuit

Leave a Message
Product Description

TLE4253GSXUMA4 Linear Voltage Regulator IC Positive Adjustable 1 Output 250mA PG-DSO-8



Features:

●Tight output tracking tolerance to reference

●Output voltage adjust down to 2.0 V

●Stable with ceramic output capacitor

●Flexibility of output voltage adjust higher or lower than reference, proportional to the reference voltage

● 250 mA output current capability

●Low dropout voltage

● Combined tracking / enable input

● Very low current consumption in OFF mode

● PG-DSO-8 packages with lowest thermal resistance

● Wide input voltage range -42 V ≤ VI ≤ 45 V

● Wide temperature range: -40°C ≤ Tj ≤ 150°C

● Output protected against short circuit to GND and battery

● Overtemperature protection • Reverse polarity proof

●Suitable for use in automotive electronics • Green product (RoHS compliant)



Description:

The OPTIREG™ linear TLE4253 is a monolithic integrated low-dropout voltage tracking regulator

in small PGDSO-8 packages. The exposed pad (EP) package variant PG-DSO-8 exposed pad offers

extremely low thermal resistance. The IC is designed to supply off-board systems, e. g. sensors in engine

management systems under the severe conditions of automotive applications. Therefore, the IC is equipped

with additional protection functions against reverse polarity and short circuit to GND and battery.



Quick Detail:

Manufacturer
Infineon Technologies
Manufacturer Product Number
TLE4253GSXUMA4
Description
IC REG LDO ADJ 0.25A 8DSOP
Detailed Description
Linear Voltage Regulator IC Positive Adjustable 1 Output 250mA PG-DSO-8



Product Attributes:

TYPE
DESCRIPTION
Category
Voltage Regulators - Linear
Mfr
Infineon Technologies
Series
Automotive, AEC-Q100
Product Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
40V
Voltage - Output (Min/Fixed)
Tracking
Voltage Dropout (Max)
0.6V @ 200mA
Current - Output
250mA
Current - Quiescent (Iq)
150 µA
Current - Supply (Max)
15 mA
PSRR
60dB (100Hz)
Control Features
Enable
Protection Features
Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature
-40°C ~ 150°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
PG-DSO-8



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names
SP001370962
448-TLE4253GSXUMA4DKR
TLE4253GSXUMA4-ND
2156-TLE4253GSXUMA4
448-TLE4253GSXUMA4TR
INFINFTLE4253GSXUMA4
448-TLE4253GSXUMA4CT
Standard Package 2500



Data Picture:https://www.infineon.com/dgdl/Infineon-TLE4253-DataSheet-v01_21-EN.pdf?fileId=5546d46259d9a4bf015a13293e8c0da9

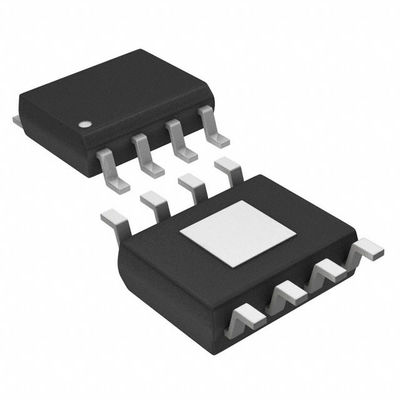

Infineon TLE4253GSXUMA4 Linear Regulator Chip Circuit 1 Output 250mA PG-DSO-8 Power IC Chip 0
