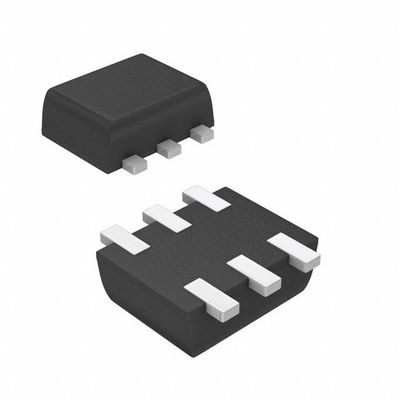

MP1660GTF-Z Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-563, SOT-666

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xManufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
---|---|---|---|
Product Number | MP1660GTF-Z | Number Of Voltages Monitored | 1 |
Voltage - Input (Min) | 4.5V | Oltage - Input (Max) | 16V |
Voltage - Output (Min/Fixed) | 0.6V | Voltage - Output (Max) | 10V |
Current - Output | 3A | Frequency - Switching | 600KHz |
Operating Temperature | -40°C ~ 125°C (TJ) | Package / Case | SOT-563, SOT-666 |
High Light | MP1660GTF-Z,Buck Switching Regulator IC 3A |
MP1660GTF-Z Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A SOT-563, SOT-666
Datasheet:MP1660GTF-Z
Category | Voltage Regulators - DC DC Switching Regulators |
Mfr | Monolithic Power Systems Inc. |
Series | MP |
Product Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 4.5V |
Voltage - Input (Max) | 16V |
Voltage - Output (Min/Fixed) | 0.6V |
Voltage - Output (Max) | 10V |
Current - Output | 3A |
Frequency - Switching | 600kHz |
Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | SOT-563, SOT-666 |
Supplier Device Package | SOT-563 |
Additional Resources:
ATTRIBUTE | DESCRIPTION |
Other Names | 1589-MP1660GTF-ZTR |
Standard Package | 5000 |
DESCRIPTION
The MP1660 is a fully integrated, highfrequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP1660 offers a very compact solution that achieves 3A of output current, with excellent load and line regulation over a wide input range. The MP1660 uses synchronous mode operation for higher efficiency over the output current load range.
Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.
The MP1660 requires a minimal number of readily available, standard external components, and is available in a space-saving SOT563 package.
FEATURES
Wide 4.5V to 16V Operating Input Range
110mΩ/60mΩ Low RDS(ON) Internal Power MOSFETs
190μA Low IQ
High-Efficiency Synchronous Mode Operation
Power-Save Mode at Light-Load
Fast Load Transient Response
600kHz Switching Frequency
Internal Soft Start (SS)
Over-Current Protection (OCP) and Hiccup Mode
Thermal Shutdown
Output Adjustable from 0.6V
Available in a SOT563 Package
APPLICATIONS
Security Cameras
Digital Set-Top Boxes
Flat-Panel Television and Monitors
General Purposes
