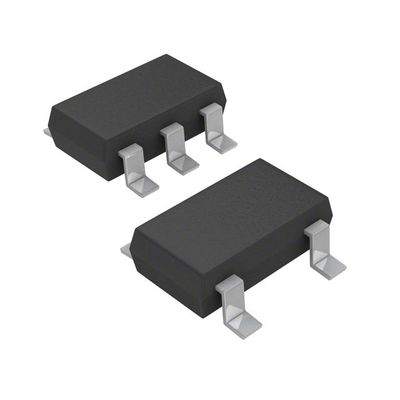

MP20056GJ-Z High Voltage Linear Regulator Power Ic Chip Circuit 1 Output 250mA TSOT-23-5
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP20056GJ-Z |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 30K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - Linear |
|---|---|---|---|
| Product Number | MP20056GJ-Z | Number Of Voltages Monitored | 1 |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V | Voltage Dropout (Max) | 0.15V @ 250mA |
| Current - Output | 250mA | Current - Quiescent (Iq) | 250 µA |
| Current - Supply (Max) | 330 µA | PSRR | 65dB ~ 33dB (100Hz ~ 1MHz) |
| Operating Temperature | -40°C ~ 125°C | Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | SOT-23-5 | ||
| High Light | MP20056GJ-Z,high voltage linear regulator power ic,linear voltage regulator circuit |
||
Product Description
MP20056GJ-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 250mA TSOT-23-5
Datasheet:MP20056GJ-Z
| Category | Voltage Regulators - Linear |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.15V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 250 µA |
| Current - Supply (Max) | 330 µA |
| PSRR | 65dB ~ 33dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | MP20056 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 3000 |
DESCRIPTION
The MP20056 is a low-dropout linear regulator that supplies up to 250mA current with a 100mV dropout voltage and can operate from 2.5V to 5.5V input. The output voltage is preset at 1.8V, 2.5V or 3.3V for the two different packages.
An external resistor divider can adjust the output voltage from 0.8V to 5V. An internal PMOS pass element allows for a low 150μA ground current, making the MP20056 suitable for battery-powered devices. Other features include low-power shutdown, shortcircuit protection, and thermal protection. The MP20056 is available in a 2mm×2mm 8-pin QFN and a 5-pin TSOT23-5 packages.
FEATURES
Up to 250mA Output Current
Low 100mV Dropout at 250mA
Low 150μA Ground Current
Low Noise: 13μVRMS typical (10Hz to 100kHz)
63dB PSRR @1kHz Stable with Ceramic Capacitor
Excellent Load/Line Transient Response
Current Limiting and Thermal Protection
Fixed output voltage 1.8V and 3.3V.
Adjustable Output Voltage from 0.8V to 5V Using an External Resistor Divider
APPLICATIONS
Notebook Computers
Cordless Phones
Cellular Phones
Wireless Communication Equipment
Hand-Held Instruments
Data Picture:https://www.monolithicpower.cn/cn/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP20056/document_id/1250/
|
