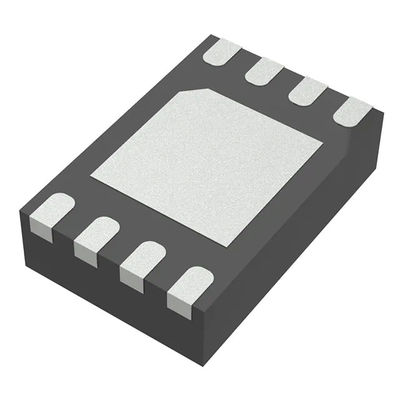

MP2005DD-LF-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA 8-QFN (2x3)
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP2005DD-LF-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 15K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - Linear |
|---|---|---|---|
| Product Number | MP2005DD-LF-Z | Number Of Outputs | 1 |
| Voltage - Input (Min) | 0.5V | Voltage - Input (Max) | 55V |
| Voltage Dropout (Max) | 0.09V @ 800mA | Voltage - Output (Max) | 4V |
| Current - Output | 800mA | Current - Quiescent (Iq) | 10 µA |
| PSRR | 48dB (1MHz) | Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 8-VDFN Exposed Pad |
| High Light | MP2005DD-LF-Z,Linear Voltage Regulator IC 800mA |
||
Product Description
MP2005DD-LF-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA 8-QFN (2x3)
Product Attributes:
| Category | Voltage Regulators - Linear |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 4V |
| Voltage Dropout (Max) | 0.09V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 µA |
| PSRR | 48dB (1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | 8-QFN (2x3) |
| Base Product Number | MP2005 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | MP2005DD-LF-Z-ND |
| 1589-1549-6 | |
| 1589-1549-2 | |
| 1589-1549-1 | |
| Standard Package | 5000 |
DESCRIPTION:
The MP2005 is a micropower, ultra low-dropout LDO linear regulator. It has a 1.0V to 5.5V input voltage range and can regulate the output voltage from as low as 0.5V. The MP2005 can supply up to 800mA of load current with a typical dropout voltage of 90mV. It requires a bias supply (2.7V to 5.5V) separate from VIN to run the internal reference and LDO drive circuitry. The output current comes directly from the input voltage supply for high efficiency regulation. The 0.5V internal reference voltage allows the output to be programmed to a wide range of voltages (0.5V to 4V). A low bias current of 100µA makes the MP2005 ideal for use in battery-powered applications. The bias supply VBIAS can be directly applied from the battery while VIN is powered from the high efficiency buck regulator (or other secondary supply). This reduces output noise and the size of the decoupling capacitor. Other features of MP2005 include thermal overload and current limit protection, stability with ultra low ESR ceramic capacitors as low as 1μF, and fast transient response. The MP2005 is available in a 8-pin QFN (2mm x 3mm) package.
FEATURES
Wide 1.0V to 5.5V Input Voltage Range
Stable with 1μF Ceramic Capacitor
Ultra-Low Dropout (ULDO) voltage: 90mV@800mA
2% Accurate Output Voltage
Adjustable Output Range of 0.5V to 4V
High PSRR o 65dB at 1KHz o 48dB at 1MHz
Better Than 0.0005%/mA Load Regulation
Stable With Low-ESR Output Capacitors
Low 100μA Ground Current
Internal Thermal Protection
Current Limit Protection
1µA Typical Quiescent Current at Shutdown
APPLICATIONS
Low Current Regulators
Low Power Handheld Devices
Battery Powered Systems
Cellular Phones
Portable Electronic Equipment
Post Regulation for Switching Power Supplies
Power Supplies
Data Picture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP2005/document_id/1212
