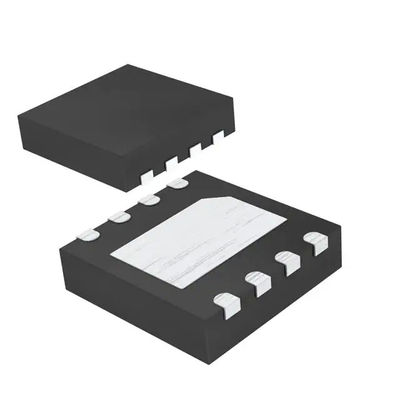

MP2013AGQ-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA 8-QFN (3x3)

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP2013AGQ-Z
Minimum Order Quantity 5000 PCS
Price Negotiable
Packaging Details 5000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 15K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems (MPS) Category Voltage Regulators - Linear
Product Number MP2013AGQ-Z Number Of Outputs 1
Voltage - Input (Min) 1.215V Voltage - Input (Max) 40V
Voltage Dropout (Max) 0.85V @ 150mA Voltage - Output (Max) 15V
Current - Output 150mA Current - Quiescent (Iq) 9 µA
Current - Supply (Max) 22 µA PSRR 58dB ~ 41dB (100Hz ~ 1kHz)
Operating Temperature -40°C ~ 125°C (TJ) Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
High Light

MP2013AGQ-Z

,

Linear Voltage Regulator IC Positive

Leave a Message
Product Description

MP2013AGQ-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA 8-QFN (3x3)



Product Attributes:

Category Voltage Regulators - Linear
Mfr Monolithic Power Systems Inc.
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 1.215V
Voltage - Output (Max) 15V
Voltage Dropout (Max) 0.85V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 9 µA
Current - Supply (Max) 22 µA
PSRR 58dB ~ 41dB (100Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-VDFN Exposed Pad
Supplier Device Package 8-QFN (3x3)
Base Product Number MP2013



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names 1589-1553-2
MP2013AGQ-Z-ND
1589-1553-1
1589-1553-6
Standard Package 5000



DESCRIPTION:
The MP2013A is a low-power, linear regulator that supplies power to systems with highvoltage batteries. It includes a wide 2.5V to 40V input range, low-dropout voltage and lowquiescent-supply current. The low-quiescent current and low-dropout voltage allow operation at extremely low-power levels. The MP2013A is ideal for low-power microcontrollers and battery-powered equipment. The MP2013A provides a wide variety of fixed, output-voltage options: 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, and 5.0V, and it provides an adjustable output option (from 1.215V to 15V). The regulator output current is internally limited; the device is protected against over-load and over-temperature conditions. The MP2013A includes thermal shutdown (TSD) and current-limiting fault protection. It is available in QFN6 (2mmx2mm), and QFN8 (3mmx3mm) packages.
FEATURES:
 2.5V to 40V Input Range
 3.3µA Quiescent-Supply Current
 Stable with Low-Value Output Ceramic Capacitor (> 0.47 μF)
 150mA Specified Current  620mV Dropout at 150mA Load
 Available in Fixed and Adjustable Output (1.215 V to 15 V) Versions
 ±2% Output Accuracy  Specified Current Limit
 Thermal Shutdown
 -40°C to +125°C Specified JunctionTemperature Range
 Available in QFN6 (2x2mm), and QFN8 (3x3mm) Packages
APPLICATIONS:
 Industrial/Automotive Applications
 Portable/Battery-Powered Equipment
 Ultra Low-Power Microcontrollers
 Cellular Handsets
 Medical Imaging
Data Picture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/EN/sku/MP2013A/document_id/1260/


MP2013AGQ-Z  Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA 8-QFN (3x3) 0
