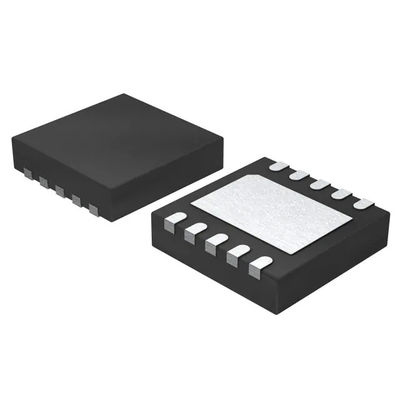

MP2155GQ-Z Buck Boost Switching Regulator IC 1.5V 3.3V 1 Output 1A 2.2A 10 VFDFN Power IC Chip
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP2155GQ-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP2155GQ-Z | Number Of Outputs | 1 |
| Voltage - Input (Min) | 2V | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V | Voltage - Output (Max) | 5V |
| Current - Output | 1A 2.2A | Frequency - Switching | 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) | Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-QFN (3x3) | ||
| High Light | MP2155GQ-Z,1.5V Power IC Chip,mp2155gq-z datasheet |
||
Product Description
MP2155GQ-Z Buck-Boost Switching Regulator IC Positive Adjustable (Fixed) 1.5V (3.3V) 1 Output 1A, 2.2A 10-VFDFN Expos
Features:
• High Efficiency up to 95%.
• Load Disconnect During Shutdown
• Input Voltage Range: 2V to 5.5V
• Adjustable Output Voltage from 1.5V to 5V
• 3.3V/1A Load Capability from 2.7V-to-5.5V Vin
• 1MHz Switching Frequency
• Pulse Skipping Mode at Light Load
• Typical 80μA Quiescent Current
• Internal Loop Compensation for Fast Response
• Internal Soft Start
• OTP, Hiccup SCP
• Available in Small 3x3mm QFN10 Package
APPLICATIONS
• Battery-Powered Products
• Portable Instruments
• Tablet PCs
• POS Systems
• GSM/GPRS
• System Controls
Description:
The MP2155 is a highly efficient, low quiescent current Buck-Boost converter, which operates from input voltage above, below and equal to the output voltage. The device provides power solution for products powered by a one-cell Lithium-Ion or multi-cell alkaline battery applications where the output voltage is within battery voltage range.
The MP2155 uses a current mode, fixed frequency PWM control for optimal stability and transient response. The fixed 1MHz switching frequency and integrated low RDS(ON) N-channel and P-channel MOSFETs minimize the solution footprint while maintaining high efficiency.
To ensure the longest battery life MP2155 has an optional pulse skipping mode that reduces switching frequency under light load conditions. For other low noise applications where variable frequency power save mode may cause interference, the logic control input MODE pin forces fixed frequency PWM operation under all load conditions.
The MP2155 operates with input voltage from 2V to 5.5V to provide adjustable output voltage (1.5V to 5V). With an input from 2.7V to 5.5V it can supply a maximum 1A current to load at 3.3V output voltage. The MP2155 is available in small QFN10-3x3mm package.
Product Attributes:
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V (3.3V) |
| Voltage - Output (Max) | 5V |
| Current - Output | 1A, 2.2A |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-QFN (3x3) |
| Base Product Number | MP2155 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1565-1 |
| 1589-1565-6 | |
| MP2155GQ-Z-ND | |
| 1589-1565-2 | |
| Standard Package | 5000 |
