MP2225GJ-Z Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A SOT-23-8

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP2225GJ-Z
Minimum Order Quantity 3000 PCS
Price Negotiable
Packaging Details 3000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 486K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number MP2225GJ-Z Manufacturer Monolithic Power Systems (MPS)
Category Voltage Regulators - DC DC Switching Regulators Number Of Outputs 1
Output Configuration Positive Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 17V Current - Output 5A
Frequency - Switching 500KHz Operating Temperature -40°C ~ 125°C (TJ)
Package / Case SOT-23-8 Thin, TSOT-23-8
High Light

MP2225GJ-Z

,

Switching Regulator IC Positive Adjustable 0.6V

Leave a Message
Product Description

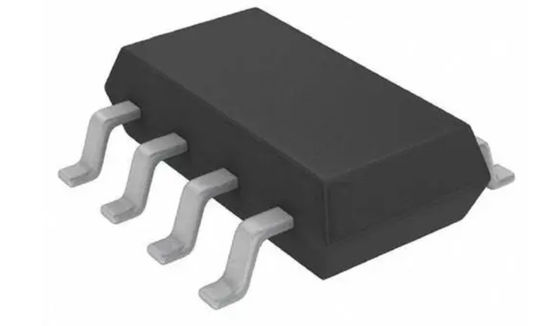

MP2225GJ-Z Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A SOT-23-8



Product Attributes:

Category Voltage Regulators - DC DC Switching Regulators
Mfr Monolithic Power Systems Inc.
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 17V
Current - Output 5A
Frequency - Switching 500kHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23-8 Thin, TSOT-23-8
Supplier Device Package TSOT-23-8
Base Product Number MP2225



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names 1589-1571-1
1589-1571-2
MP2225GJ-Z-ND
1589-1571-6
Standard Package 3000



DESCRIPTION

The MP2225 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 5A output current with excellent load and line regulation over a wide input supply range. The MP2225 has synchronous mode operation for higher efficiency over the output current load range.

Current-mode operation provides fast transient response and eases loop stabilization. Full protection features include over-current protection and thermal shut down.

The MP2225 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package.

FEATURES

• Wide 4.5V-to-18V Operating Input Range

• Adjustable Output Voltage as low as 0.6V

• Low 47mΩ/18mΩ RDS(ON) of Internal Power MOSFETs

• High Efficiency up to 97%

• Fixed 500kHz Switching Frequency

• Synchronizes from a 200kHz-to-2MHz External Clock

• 2.4ms Internal Soft-Start Time

• 1% Reference Accuracy at Room Temperature

• Internal Power-save Mode

• OCP with hiccup mode

• Available in 8-pin TSOT23

APPLICATIONS

• Flat-Panel Television and Monitors

• Notebook Systems and I/O Power

• Digital Set-Top Boxes

• Distributed Power Systems

DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP2225GJ-Z/document_id/922/





MP2225GJ-Z   Switching Regulator IC Positive Adjustable 0.6V 1 Output 5A SOT-23-8 0
