MP26123DR-LF-Z Charger IC Lithium Ion 16-QFN (4x4)

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP26123DR-LF-Z
Minimum Order Quantity 5000 PCS
Price Negotiable
Packaging Details 5000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 15K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems (MPS) Category Battery Chargers
Product Number MP26123DR-LF-Z Package Tape & Reel (TR)
Number Of Outputs 2-3 Current - Charging Constant - Programmable
Charge Current - Max 2A Battery Pack Voltage 12.6V
Voltage - Supply (Max) 24V Operating Temperature -40°C ~ 85°C (TJ)
Package / Case 16-VQFN Exposed Pad
Leave a Message
Product Description

Datasheet:MP26123DR-LF-Z



Buck Switching Regulator IC Positive Adjustable 12.6V 1 Output 2A 21-PowerVFQFN

Features:

●Wide Input Voltage Range from 12.6V

●Differential Output Voltage Remote Sense

●Programmable Accurate Current Limit Level

2A Output Current

●Proprietary Switching Loss Reduction Technique

●Adaptive COT for Ultrafast Transient Response

●Stable with Zero ESR Output Capacitor



Description:

The  MP26123DR-LF-Z  is a fully integrated, high frequency, synchronous buck converter. It
offers a very compact solution to achieve up to2A output current over a wide input supply
range with excellent load and line regulation.The MP26123DR-LF-Z operates at high efficiency
over a wide output current load range.The MP26123DR-LF-Z adopts internally compensated
constant-on-time (COT) control mode thatprovides fast transient response and eases loop
stabilization.



Quick Detail:

Packaging
Tape & Reel (TR)
Manufacturer
Monolithic Power Systems Inc.
Manufacturer Product Number
MP26123DR-LF-Z
Description
IC REG BUCK ADJUSTABLE 2A 21QFN
Detailed Description
Buck Switching Regulator IC Positive Adjustable12.6V 1 Output 2A 21-PowerVFQFN



Product Attributes:

TYPE
DESCRIPTION
Category
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
Mfr
Monolithic Power Systems Inc.
Package
Tape & Reel (TR)
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Voltage - Input (Min)
12.6V
Voltage - Input (Max)
24V
Charge Current - Max 2A
Operating Temperature
-40°C ~ 85°C (TJ)
Mounting Type
Surface Mount
Package / Case
16-VQFN Exposed Pad
Supplier Device Package
16-QFN (4x4)
Base Product Number
MP26123



Additional Resources:

ATTRIBUTE DESCRIPTION
Standard Package 5000



Data Picture:

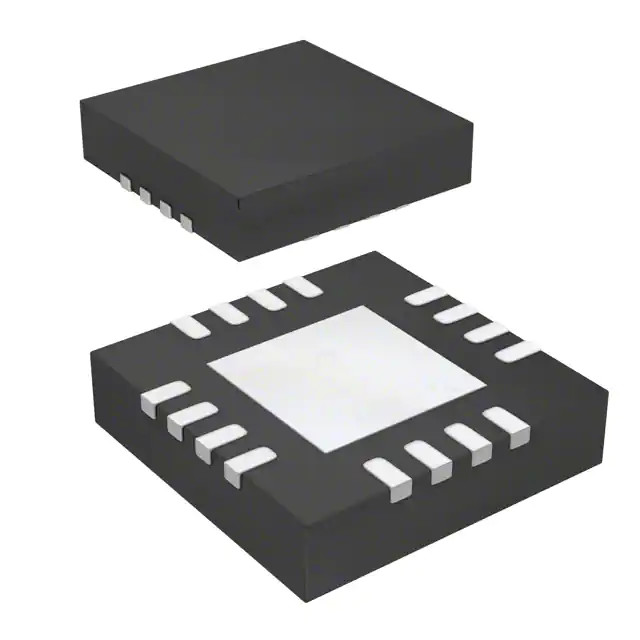

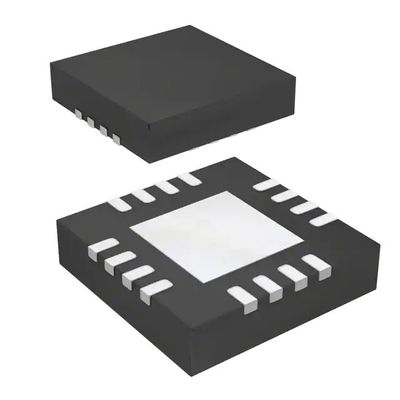

MP26123DR-LF-Z		 Charger IC Lithium Ion 16-QFN (4x4) 0
