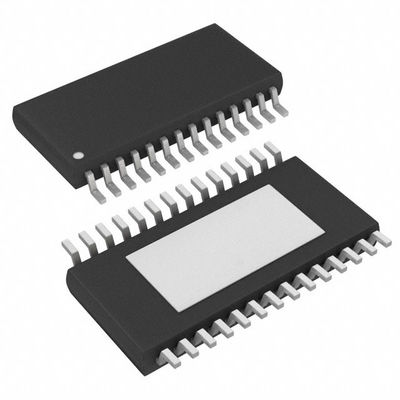

Electronic MP3393EF-LF-Z LED Driver IC 8 Output DC DC Controller Step-Up Boost Analog, PWM Dimming 28-TSSOP-EP

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP3393EF-LF-Z
Minimum Order Quantity 2500PCS
Price Negotiable
Packaging Details 2500PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Mfr Monolithic Power Systems Inc. Category LED Drivers
Type DC DC Controller Number Of Outputs 8
Voltage - Supply (Min) 9V Voltage - Supply (Max) 32V
Current - Output / Channel 350mA Frequency 670kHz
Operating Temperature -40°C ~ 125°C (TJ) Package / Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-TSSOP-EP
High Light

Electronic Mp3393ef-lf-z Component


led driver ic chip



Leave a Message
Product Description

MP3393EF-LF-Z LED Driver IC 8 Output DC DC Controller Step-Up (Boost) Analog, PWM Dimming 28-TSSOP-EP​
• 9V-to-32V Input Voltage Range
• Drives 8 Channels of LED strings
• Internal Constant-Current Control
• Maximum Channel Current Over 350mA
• 1.2% Current Matching Accuracy Between Strings
• Programmable Switching Frequency
• Analog Dimming and External PWM Dimming
• Open and Short LED Protection
• Programmable Over-Voltage Protection
• Fault Output Flag • Thermal Shutdown
• Extendable LED Channels that Share One Power Stage Set
• TSSOP28EP and SOIC28 Packages

The MP3393 is a step-up controller with 8 current channel sources designed to power WLED backlights for large LCD panels. The MP3393 uses current-mode fixed-frequency architecture. It drives an external MOSFET to boost the output voltage. The switching frequency is programmable by an external setting resistor. The MP3393 integrates a constant-current control circuit to regulate the current in each LED string to the value set by an external current feedback resistor. Current matching can achieve 1.2% regulation accuracy between strings. Its low 202mV regulation voltage reduces power loss and improves efficiency. The MP3393 includes protections including under-voltage lockout, LED open/short protection, and thermal shutdown. The fault flag pin indicates the statuses of all fault signals. The MP3393 can be daisy-chained to expand the number of LED channels. It is available in TSSOP28EP and SOIC28 packages.

Quick Detail:

Monolithic Power Systems Inc.
Manufacturer Product Number
Detailed Description
Buck Switching Regulator IC Positive Adjustable9V 1Output 350mA 21-PowerVFQFN

Product Attributes:

CategoryLED Drivers
MfrMonolithic Power Systems Inc.
Product StatusActive
TypeDC DC Controller
TopologyStep-Up (Boost)
Internal Switch(s)No
Voltage - Supply (Min)9V
Voltage - Supply (Max)32V
DimmingAnalog, PWM
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package28-TSSOP-EP
Base Product NumberMP3393

Additional Resources:

Standard Package2500

Data Picture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP3393/document_id/1540
Electronic MP3393EF-LF-Z  LED Driver IC 8 Output DC DC Controller Step-Up Boost  Analog, PWM Dimming 28-TSSOP-EP 0
