Monolithic Power Systems MP3416GQH-Z Step Up Regulator Ic PS2 USB 1.8V 1 Output 1.1A 8-VFDFN
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP3416GQH-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 110K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP3416GQH-Z | Output Type | PS2/USB |
| Number Of Outputs | 1 | Voltage - Input (Min) | 0.86V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | 5.5V | Current - Output | 1.1A |
| Operating Temperature | -40°C ~ 125°C (TJ) | Package / Case | 8-VFDFN |
| High Light | MP3416GQH-Z,Monolithic Power Systems MP3416GQH-Z,MP3416GQH-Z step up regulator ic |
||
Product Description
MP3416GQH-Z Step-Up (Boost) Switching Regulator IC PS2/USB 1.8V 1 Output 1.1A 8-VFDFN
Features:
Input Voltage Range: 0.86V to 5.5V
Start-Up Voltage Range:1.25V to 5.5V
Output Voltage Range: 1.8V to 5.5V
9.5μA Quiescent Current
<650nA Shutdown Current
Up to 80% Efficiency at 100μA-200μA LightLoad Condition
Output Disconnect in Shutdown
DownMode When VIN> VOUT
Adjustable Low Battery Detection
Internal Synchronous Rectifier
Over-Temperature Protection(OTP) withThermal Shutdown at 155°C
Available in TSOT23-8 and QFN-8 (1.5mmx2.0mm) Packages
Description:
The MP3416 is a low quiescent current, step-up converterthat uses peak-currentcontrol and variable frequency architecture to regulate the output voltage. The MP3416 can work with an input voltage as low as 0.86Vto provide an output voltage from 1.8V to 5.5V
The MP3416 works in peak-current-control modeand provides good transient response. The integrated P-channel synchronous rectifier improves efficiency and eliminates the need for an external Schottky diode.
In light-load condition, the peak current declines to about 350mA, and the device enters pulseskip mode to save power loss. When the MP3416 shuts down, the output is disconnected from the input, allowing the output to draw less than 0.65µA in shutdown mode.
The MP3416 is available in 8-pin TSOT23 and 8- pin QFN (1.5mmx2.0mm) packages.
Product Attributes:
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Function | Step-Up |
| Topology | Step-Up (Boost) |
| Output Type | PS2/USB |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.86V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 1.1A |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN |
| Supplier Device Package | 8-QFN (2x1.5) |
| Base Product Number | MP3416 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1639-6 |
| 1589-1639-2 | |
| MP3416GQH-Z-ND | |
| 1589-1639-1 | |
| Standard Package | 5000 |

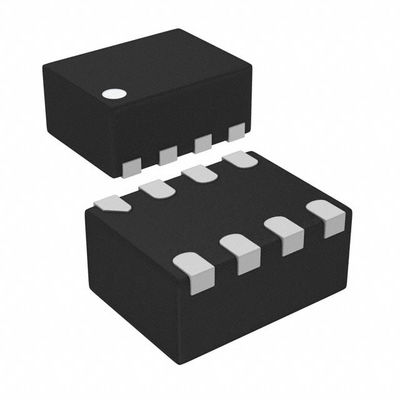

Data Picture:
