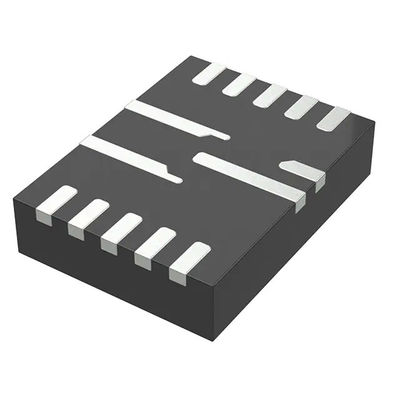

MP8714GLE-Z Monolithic Power Systems Semiconductor 0.6V 1 Output 10A 14-PowerVFQFN
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP8714GLE-Z |
| Minimum Order Quantity | 5000PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 65K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP8714GLE-Z | Output Type | Adjustable |
| Number Of Outputs | 1 | Input Voltage-Max | 17V |
| Input Voltage-Min | 4.5V | Output Oltage-Max | 5.5V |
| Output Voltage-Min | 0.6V | Topology | BUCK |
| Operating Temperature | -40°C ~ 125°C | Current - Output (Max) | 10A |
| Package / Case | 14-PowerVFQFN | Supplier Device Package | 14-QFN (3x4) |
| High Light | MP8714GLE-Z,monolithic power systems,monolithic power semiconductor |
||
Product Description
MP8714GLE-Z Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 10A 14-PowerVFQFN
Datasheet:MP8714GLE-Z
TYPE | DESCRIPTION |
Category | Voltage Regulators - DC DC Switching Regulators |
Mfr | Monolithic Power Systems Inc. |
Product Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Voltage - Input (Min) | 4.5V |
Voltage - Input (Max) | 17V |
Voltage - Output (Min/Fixed) | 0.6V |
Voltage - Output (Max) | 5.5V |
Current - Output | 10A |
Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 21-PowerVFQFN |
Supplier Device Package | 21-QFN (3x4) |
Base Product Number | MPQ8714 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 5000 |
DESCRIPTION
The MP8714 is a high-frequency, synchronous, rectified, step-down, switch-mode converter. This fully integrated solution achieves 10A of output current with excellent load and line regulation over a wide input supply range.
Current mode operation provides fast transient response and eases loop stabilization. EN/SYNC supports external clock synchronization, and an open-drain power good pin (PG) indicates when the output voltage is in the nominal range.
Full protection features include over-voltage protection (OVP), hiccup over-current protection (OCP), and thermal shutdown.
The MP8714 requires a minimal number of readily available, standard, external components and is available in a QFN-14 (3mmx4mm) package.
FEATURES
Wide 4.5V to 17V Operating Input Range
10A Continuous Output Current
26mΩ High-Side, 11mΩ Low-Side RDS(ON) for Internal Power MOSFETs
200kHz - 2MHz Synchronized External Clock
Programmable Soft-Start (SS) Time
Open-Drain Power Good (PG) Indicator
Output Over-Voltage Protection (OVP)
Thermal Shutdown
Available in a Small QFN-14 (3mmx4mm) Package
APPLICATIONS
Flat-Panel Televisions and Monitors
Set-Top Boxes
Distributed Power Systems
DataPicture:https://www.monolithicpower.cn/cn/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP8714/document_id/1036/
