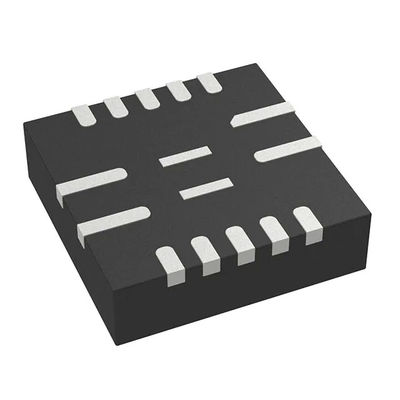

MP8765GQ-Z MPS Buck Switching Regulator IC Positive Adjustable 0.604V 1 Output 6A 16-PowerVFQFN
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP8765GQ-Z |
| Minimum Order Quantity | 5000PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 9.3K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP8765GQ-Z | Output Type | Adjustable |
| Number Of Outputs | 1 | Input Voltage-Max | 22V |
| Input Voltage-Min | 5.5V | Output Oltage-Max | 12V |
| Output Voltage-Min | 0.604V | Operating Temperature | -40°C ~ 125°C |
| Current - Output (Max) | 6A | Frequency - Switching | 500kHz |
| Package / Case | 16-PowerVFQFN | Supplier Device Package | 16-QFN (3x3) |
| High Light | MP8765GQ-Z,Buck Switching Regulator IC Positive Adjustable,MP8765GQ-Z MPS |
||
Product Description
Datasheet:MP8765GQ-Z
TYPE | DESCRIPTION |
Category | Voltage Regulators - DC DC Switching Regulators |
Mfr | Monolithic Power Systems Inc. |
Product Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Voltage - Input (Min) | 5V |
Voltage - Input (Max) | 22V |
Voltage - Output (Min/Fixed) | 0.604V |
Voltage - Output (Max) | 5.5V |
Current - Output | 6A |
Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | 21-PowerVFQFN |
Supplier Device Package | 21-QFN (3x4) |
Base Product Number | MPQ8765 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 5000 |
DESCRIPTION
The MP8765 is a fully integrated high frequency synchronous rectified step-down switch mode converter. It offers very compact solutions to achieve 6A continuous output current over a wide input supply range with excellent load and line regulation. The MP8765 operates at high efficiency over a wide output current load range.
Constant-On-Time (COT) control mode provides fast transient response and eases loop stabilization.
Under voltage lockout is internally set as 4.6 V, An open drain power good signal indicates the output is within its nominal voltage range.
Full protection features include OCP and thermal shut down.
The converter requires minimum number of external components and is available in QFN16 (3mmx3mm) package.
FEATURES
Wide 5V to 24V Operating Input Range
6A Continuous Output Current
PFM/PWM Mode Selectable
Low RDS(ON) Internal Power MOSFETs
Proprietary Switching Loss Reduction Technique
1% Reference Voltage
7ms Internal Soft Start
Output Discharge
500kHz Switching Frequency
Hiccup OCP Protection and Thermal Shutdown
Auto Retry OVP Protection
Output Adjustable from 0.604V to 5.5V
APPLICATIONS
Laptop Computer
Tablet PC
Networking Systems
Personal Video Recorders
Flat Panel Television and Monitors
Distributed Power Systems
DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP8765/document_id/777
