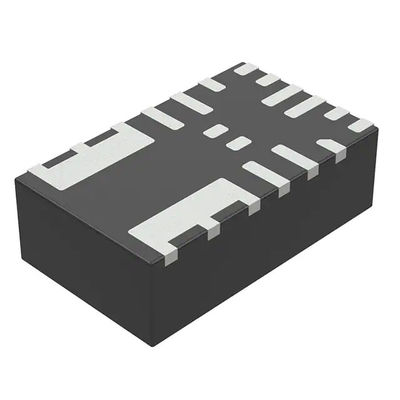

MPM3840GQV-Z Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 4A 2.8V - 5.5V Input
| Place of Origin | Monolithic Power Systems Inc. |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MPM3840GQV-Z |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 15K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | MPM3840GQV-Z | Manufacturer | Monolithic Power Systems Inc. |
|---|---|---|---|
| Category | DC DC Converters | Number Of Outputs | 1 |
| Input Voltage-Max | 5.5V | Input Voltage-Min | 2.8V |
| Output Voltage-Max | 5.5V | Output Voltage-Min | 0.6V |
| Output Current | 4A | Topology | BUCK |
| Operating Temperature | -40°C ~ 125°C | Efficiency | 80% |
| Mounting Type | Surface Mount | Package / Case | 20-PowerLFQFN Module |
| Size / Dimension | 0.20" L X 0.12" W X 0.06" H (5.1mm X 3.0mm X 1.5mm) | Supplier Device Package | 20-QFN (3x5) |
| High Light | MPM3840GQV-Z,non-isolated pol module dc dc converter,mpm3840gqv-z datasheet |
||
Product Description
MPM3840GQV-Z Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 4A 2.8V - 5.5V Input
Quick Detail:
|
Manufacturer
|
Monolithic Power Systems Inc.
|
|
Manufacturer Product Number
|
MPM3840GQV-Z
|
|
Description
|
DC DC CONVERTER 0.6-5.5V
|
|
Detailed Description
|
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 4A 2.8V - 5.5V Input
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
DC DC Converters
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Product Status
|
Active
|
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
2.8V
|
|
Voltage - Input (Max)
|
5.5V
|
|
Voltage - Output 1
|
0.6 ~ 5.5V
|
|
Current - Output (Max)
|
4A
|
|
Applications
|
ITE (Commercial)
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Efficiency
|
0.8
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-PowerLFQFN Module
|
|
Size / Dimension
|
0.20" L x 0.12" W x 0.06" H (5.1mm x 3.0mm x 1.5mm)
|
|
Supplier Device Package
|
20-QFN (3x5)
|
|
Base Product Number
|
MPM3840
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
1589-1773-1
|
|
1589-1773-2
|
|
|
MPM3840GQV-Z-ND
|
|
|
1589-1773-6
|
|
| Standard Package | 2500 |
Description:
The MPM3840 is a DC/DC module that includes a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs and an inductor. The MPM3840 can provide 4A of continuous output current from a 2.8V to 5.5V input voltage with excellent load and line regulation. The MPM3840 is ideal for powering portable equipment that run on a single-cell Lithium-ion (Li+) battery.
The output voltage can be regulated as low as 0.6V. Only input capacitors, output capacitors, and feedback (FB) resistors are required to complete the design. The constant-on-time (COT) control scheme provides a fast transient response, high light-load efficiency, and easy loop stabilization.
Full protection features include cycle-by-cycle current limiting and thermal shutdown.
The MPM3840 requires a minimal number of readily available, standard, external components and is available in an ultra-small QFN-20 (3mmx5mmx1.6mm) package.
FEATURES
>80% Light-Load Efficiency
Low IQ: 40μA
Wide 2.8V to 5.5V Operating Input Range
Output Voltage as Low as 0.6V
100% Duty Cycle in Dropout
4A Output Current
25mΩ and 12mΩ Internal Power MOSFETs
1.2MHz Frequency
External Mode Control
External Mode Control (PWM.PFM) and Dynamic Analog Voltage
EN and Power Good for Power Sequencing
Cycle-by-Cycle Over-Current Protection (OCP)
1.5ms Internal Soft-Start Time with PreBiased Start-Up
Short-Circuit Protection (SCP) with Hiccup Mode
Thermal Shutdown
Stable with Low ESR Output Ceramic Capacitors
Available in a QFN-20 (3mmx5mmx1.6mm) Package
APPLICATIONS
Networking/Servers
Space-Constraint Applications
Industrial Products
Low-Voltage I/O System Power
