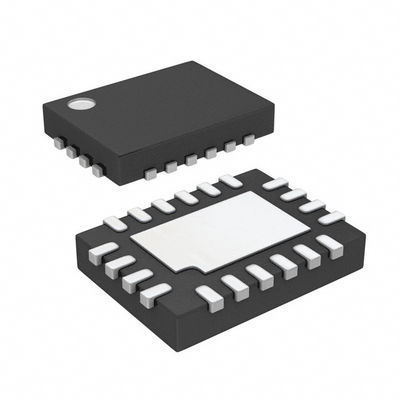

MPQ2918GL-AEC1-Z Switching Regulator IC Output 20-TFQFN Exposed Pad Power IC Chip
| Place of Origin | Monolithic Power Systems Inc. |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MPQ2918GL-AEC1-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | MPQ2918GL-AEC1-Z | Manufacturer | Monolithic Power Systems (MPS) |
|---|---|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators | Output Type | Adjustable |
| Topology | BUCK | Switching Frequency | 430kHz |
| Operating Temperature | -40°C ~ 125°C | Number Of Outputs | 1 Output |
| Input Voltage | 4V To 40V | Output Voltage | 25V |
| Output Current | 13.2 UA | Package / Case | QFN-20 |
| Operating Supply Current | 25 UA | Qualification | AEC-Q100 |
| High Light | MPQ2918GL-AEC1-Z,Switching Power IC Chip,20-TFQFN Power IC Chip |
||
Product Description
MPQ2918GL-AEC1-Z Switching Regulator IC Output 20-TFQFN Exposed Pad
Quick Detail:
|
Manufacturer
|
Monolithic Power Systems Inc.
|
|
Manufacturer Product Number
|
MPQ2918GL-AEC1-Z
|
|
Description
|
IC REG IND GRADE 4-40V INPUT C
|
|
Detailed Description
|
Switching Regulator IC Output 20-TFQFN Exposed Pad
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Product Status
|
Active
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-TFQFN Exposed Pad
|
|
Supplier Device Package
|
20-QFN (3x4)
|
|
Base Product Number
|
MPQ2918
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 5000 |
DESCRIPTION
The MPQ2918 is a high-voltage, synchronous, step-down controller that steps down voltages directly from up to 40V. The MPQ2918 uses pulse-width modulation (PWM) current control architecture with accurate cycle-by-cycle current limiting and is capable of driving dual N-channel MOSFETs.
Advanced asynchronous mode (AAM) enables non-synchronous operation to optimize lightload efficiency.
The operating frequency of the MPQ2918 can be programmed by an external resistor or synchronized to an external clock for noisesensitive applications. Full protection features include precision output over-voltage protection (OVP), output over-current protection (OCP), and thermal shutdown.
The MPQ2918 is available in TSSOP-20EP and QFN-20 (3mmx4mm) packages.
FEATURES
• Wide 4V to 40V Operating Input Range
• Dual N-Channel MOSFET Driver
• 0.8V Voltage Reference with ±1.5% Accuracy Over Temperature
• Low Dropout Operation: Maximum Duty Cycle at 99.5%
• Programmable Frequency Range: 100kHz - 1000kHz
• External Sync Clock Range: 100kHz - 1000kHz
• 180° Out-of-Phase SYNCO Pin
• Programmable Soft Start (SS)
• Power Good (PG) Output Voltage Monitor
• Selectable Cycle-by-Cycle Current Limit
• Output Over-Voltage Protection (OVP)
• Over-Current Protection (OCP)
• Internal LDO with External Power Supply Option
• Programmable Forced CCM and AAM
• Available in TSSOP-20EP and QFN-20 (3mmx4mm) Packages
• Available in a Wettable Flank Package
• Available in AEC-Q100 Grade-1
APPLICATIONS
• Automotive
• Industrial Control Systems
