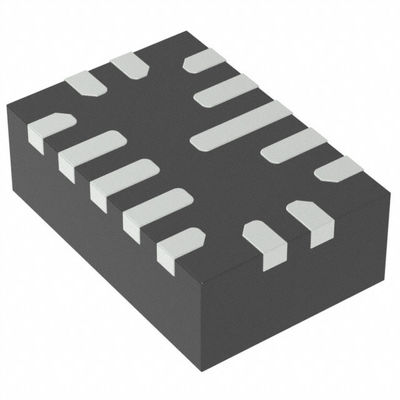

MPQ8626GD-Z Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 14-VFQFN
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MPQ8626GD-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 15K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems Inc. | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MPQ8626GD-Z | Package | Tape & Reel (TR) |
| Output Type | Positive | Number Of Outputs | 1 |
| Input Voltage-Max | 16V | Input Voltage-Min | 2.85V |
| Output Voltage-Max | 6V | Output Voltage-Min | 0.6V |
| Output Current | 6A | Topology | BUCK |
| Switching Frequency | 200kHz ~ 1MHz | Operating Temperature | -40°C ~ 125°C |
Product Description
Datasheet:MPQ8626GD-Z
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 21-PowerVFQFN
Features:
● Wide Input Voltage Range o 2.85V to 16V
●Differential Output Voltage Remote Sense
●Programmable Accurate Current Limit Level
● 6A Output Current
●Proprietary Switching Loss Reduction Technique
●Adaptive COT for Ultrafast Transient Response
●Stable with Zero ESR Output Capacitor
Description:
TheMPQ8626GD-Z range with excellent load and line regulation.The MPQMPQ8626GD-Z over a wide output current load range.TheMPQ8626GD-Z adopts internally compensated operates at high efficiencyoffers a very compact solution to achieve up to6A output current over a wide input supplyis a fully integrated, high frequency, synchronous buck converter. It
constant-on-time (COT) control mode thatprovides fast transient response and eases loop
stabilization.
Quick Detail:
| Packaging | Tape & Reel (TR) |
| Manufacturer | Monolithic Power Systems Inc. |
| Manufacturer Product Number | MPQ8626GD-Z |
| Description | IC REG BUCK ADJUSTABLE 6A 21QFN |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 21-PowerVFQFN |
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Integrated Circuits (ICs)
|
|
Power Management (PMIC)
|
|
|
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Package
|
Tape & Reel (TR)
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Voltage - Input (Min)
|
2.85V |
|
Voltage - Input (Max)
|
16V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
| Voltage - Output (Max) | 6V |
|
Frequency - Switching
|
600kHz ~ 1MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
21-PowerVFQFN
|
|
Supplier Device Package
|
21-QFN (3x4)
|
|
Base Product Number
|
MPQ8632
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 5000 |
Data Picture:
The MPQ8626 is a fully integrated, highfrequency, synchronous, buck converter. The MPQ8626 offers a very compact solution that achieves up to 6A of output current with excellent load and line regulation over a wide input supply range. The MPQ8626 operates at high efficiency over a wide output current load range. The MPQ8626 adopts an internally compensated constant-on-time (COT) control that provides fast transient response and eases loop stabilization. The operating frequency can be set to 600kHz, 1100kHz, or 2000kHz easily with MODE configuration, allowing the MPQ8626 frequency to remain constant regardless of the input and output voltages. The output voltage start-up ramp is controlled by an internal 1.5ms timer, which can be increased by adding a capacitor on TRK/REF. An open-drain power good (PGOOD) signal indicates if the output is within its nominal voltage range. PGOOD is clamped at around 0.7V with an external pull-up voltage when the input supply fails to power the MPQ8626. Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP). The MPQ8626 requires a minimal number of readily available, standard, external components and is available in a QFN-14 (2mmx3mm) package. FEATURES • Wide Input Voltage Range o 2.85V to 16V with External 3.3V VCC Bias o 4V to 16V with Internal VCC Bias or External 3.3V VCC Bias • 6A Output Current • Programmable Accurate Current Limit Level • Low RDS(ON) Integrated Power MOSFETs • Proprietary Switching Loss Reduction Technique • Adaptive Constant-On-Time (COT) for Ultrafast Transient Response • Stable with Zero ESR Output Capacitor • 0.5% Reference Voltage Over 0°C to +70°C Junction Temperature Range • 1% Reference Voltage Over -40°C to +125°C Junction Temperature Range • Selectable Forced CCM or Pulse-Skip Operation • Excellent Load Regulation • Output Voltage Tracking • Output Voltage Discharge • PGOOD Active Clamped at Low Level during Power Failure • Programmable Soft-Start Time from 1ms and Up • Pre-Bias Start-Up • Selectable Switching Frequency from 600kHz, 1100kHz, and 2000kHz • Non-Latch for OCP, OVP, UVP, OTP, and UVLO • Output Adjustable from 0.6V to 0.9 x VIN Up to 6V Max • Available in a QFN-14 (2mmx3mm) Package APPLICATIONS • Telecom and Networking Systems • Server, Cloud-Computing, Storage • Base Stations • General Purpose Point-of-Load (PoL) • 12V Distribution Power Systems • High-end TV • Game Consoles and Graphic Cards
