MPQ8632GL-10-Z Buck Switching Regulator IC Positive Adjustable 0.611V 1 Output 10A 13-VFQFN

Place of Origin Monolithic Power Systems Inc.
Brand Name MPS
Certification RoHS
Model Number MPQ8632GL-10-Z
Minimum Order Quantity 5000 PCS
Price Negotiable
Packaging Details 5000 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 40K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number MPQ8632GLE-10-Z Category Voltage Regulators - DC DC Switching Regulators
Manufacturer Monolithic Power Systems Inc. Package Tape & Reel (TR)
Output Type Positive Number Of Outputs 1
Input Voltage-Max 18V Input Voltage-Min 2.5V
Output Voltage-Max 13V Output Voltage-Min 0.611V
Output Current 10A Topology BUCK
Switching Frequency 200kHz ~ 1MHz Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount Package / Case 13-VFQFN
Supplier Device Package 13-QFN (3x4)
High Light

MPQ8632GL-10-Z

,

Switching Regulator IC Positive Adjustable

Leave a Message
Product Description

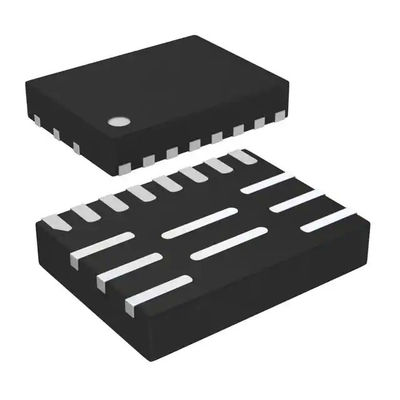

MPQ8632GL-10-Z Buck Switching Regulator IC Positive Adjustable 0.611V 1 Output 10A 13-VFQFN

Quick Detail:

Manufacturer
Monolithic Power Systems Inc.
Manufacturer Product Number
MPQ8632GL-10-Z
Description
IC REG BUCK ADJUSTABLE 10A 16QFN
Detailed Description
Buck Switching Regulator IC Positive Adjustable 0.611V 1 Output 10A 13-VFQFN



Product Attributes:

TYPE
DESCRIPTION
Category
Voltage Regulators - DC DC Switching Regulators
Mfr
Monolithic Power Systems Inc.
Product Status
Not For New Designs
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
2.5V
Voltage - Input (Max)
18V
Voltage - Output (Min/Fixed)
0.611V
Voltage - Output (Max)
13V
Current - Output
10A
Frequency - Switching
200kHz ~ 1MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
13-VFQFN
Supplier Device Package
13-QFN (3x4)
Base Product Number
MPQ8632



Additional Resources:

ATTRIBUTE DESCRIPTION
Standard Package 5000



DESCRIPTION

The MPQ8632 is a fully integrated high frequency synchronous rectified step-down switch mode converter. It offers a very compact solution to achieve 4A/6A/8A/10A/12A/15A/20A output current over a wide input supply range with excellent load and line regulation.



The MPQ8632 uses Constant-On-Time (COT) control mode to provide fast transient response and ease loop stabilization.



An external resistor programs the operating frequency from 200kHz to 1MHz and the frequency keeps nearly constant as input supply varies with the feedforward compensation.



The default under voltage lockout threshold is internally set at 4.1V, but a resistor network on the enable pin can increase this threshold. The soft start pin controls the output voltage startup ramp. An open drain power good signal indicates that the output is within nominal voltage range.



It has fully integrated protection features that include over-current protection, over-voltage protection and thermal shutdown.



The MPQ8632 requires a minimal number of readily available standard external components and is available in a 16-Pin QFN 3mm×4mm or a 29-Pin QFN 5mm×4mm package.



FEATURES

* Low Input Voltage Range from 2.5V: -- 2.5V to 18V with External 5V Bias -- 4.5V to 18V with Internal Bias

*Scalable Family of Products for 4A to 20A Output Current Applications -- 4A/6A/8A/10A/12A Share the Same Footprint --15A/20A Share the Same Footprint, with Slight Change on Power Stage Section from 4A/6A/8A/10A/12A

* Optimal Low RDS(ON) Internal Power MOSFETs Per Device

* Proprietary Switching Loss Reduction Technique

* Adaptive COT for Ultrafast Transient Response

* 0.5% Reference Voltage Over 0qC to 70qC Junction Temperature Range

* Programmable Soft Start Time

* Pre-Bias Start up

* Programmable Switching Frequency from 200kHz to 1MHz

* Non-latch OCP, OVP and Thermal Shutdown Protection

* Output Adjustable from 0.611V to 13V





APPLICATIONS

* Telecom and Networking Systems

* Base Stations x Servers

* Personal Video Recorders

* Flat Panel Television and Monitors

* Distributed Power Systems

Data Picture:https://media.digikey.com/pdf/Data%20Sheets/Monolithic%20Power%20PDF's/MPQ8632.pdf

MPQ8632GL-10-Z  Buck Switching Regulator IC Positive Adjustable 0.611V 1 Output 10A 13-VFQFN 0
