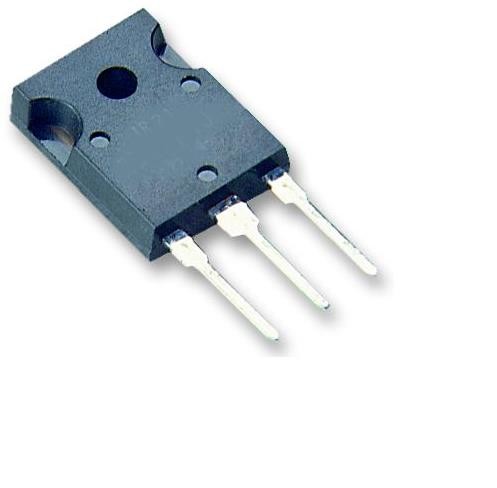

Toshiba TK090N65Z,S1F(S N Channel MOSFET 650V 30A 0.075ohm TO-247
| Place of Origin | JAPAN |
|---|---|
| Brand Name | Toshiba |
| Certification | ROHS |
| Model Number | TK090N65Z,S1F(S |
| Minimum Order Quantity | 1000 |
| Delivery Time | 2-3DAYS |
| Payment Terms | TT Advance |
| Supply Ability | 50k/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chip Type | Power IC | Package Type | TO-247 |
|---|---|---|---|
| Humidity Range | 5%~95%RH | Application | Switching Power Supplies |
| Current | 30-120A | Temperature Range | -55℃~+150℃ |
| Size | 13.63*16.95MM | ||
| High Light | 650V Power IC Chip,30A Power IC Chip,0.075ohm Power IC Chip |
||
You can tick the products you need and communicate with us in the message board.
| Characteristics | Symbol | Rating | Unit | |
|---|---|---|---|---|
| Drain-source voltage | VDSS | 650 | V | |
| Gate-source voltage | VGSS | ±30 | V | |
| Drain current (DC) | IDI | 30 | A | |
| Drain current (pulsed) | IDP | 120 | A | |
| Single-pulse avalanche energy | EAS | 265 | mJ | |
| Single-pulse avalanche current | IAS | 7.5 | A | |
| Reverse drain current (DC) | IDR | 30 | A | |
| Reverse drain current (pulsed) | Idrp | 120 | A | |
| Channel temperature | Tch | 150 | °C | |
| Storage temperature | Tstg | -55 to 150 | °C |
Product Description
Product Description:
Power IC Chip Product Overview
Power IC Chip is a type of chip manufactured by Toshiba. It has a wide temperature range from -55℃ to +150℃ and is widely used in many industries. This chip is designed with MOSFET N technology, and specific models include TK090N65Z, S1F(S1FN) and S1V(S1VN). It can handle a wide range of power and its operating temperature range is also from -55℃ to +150℃. It is reliable and durable with an extended storage temperature range of -55℃ to +150℃.
Features:
- Product Name: Power IC Chip
- Application: Switching Power Supplies
- Power: MOSFET N
- Voltage: VDSS 650V
- Temperature Range: -55℃~+150℃
- Operating Temperature: -55℃~+150℃
- Keywords: Toshiba TK090N65Z,S1F(S, MOSFET N
Technical Parameters:
| Power | 650V, 30A |
|---|---|
| Storage Temperature | -55℃~+150℃ |
| Temperature Range | -55℃~+150℃ |
| Voltage | VDSS 650V |
| Chip Type | Power IC |
| Size | 13.63*16.95MM |
| Operating Temperature | -55℃~+150℃ |
| Humidity Range | 5%~95%RH |
| Package Type | TO-247 |
| Application | Switching Power Supplies |
| MOSFET N | 30A |
Applications:
Toshiba TK090N65Z,S1F(S Power IC Chip is widely used in switching power supplies and applications where high current is required. It is a 650V, 30A, TO-247 MOSFET N-channel power device. It is certified with RoHS and offers high frequency operation ranging from 50Hz to 60Hz. The device features a low profile and is suitable for high temperature operations. It is also lightweight, weighing only 6.15g. The storage temperature range is from -55℃ to +150℃. The minimum order quantity is 1000 units and the delivery time is 2-3 days. Payment terms are TT Advance and the supply ability is 50k/month.
Support and Services:
Power IC Chip Technical Support and Services
We provide technical support and services for Power IC Chip products including:
- Technical consultation and troubleshooting
- Software updates
- Product maintenance and repair
- Product customization
- Technical training
For further assistance, please contact us at support@powericchip.com.
Packing and Shipping:
Packaging and Shipping
Power IC Chip is carefully packed in a static-free packaging material which is sealed to protect it from any physical damage during shipping. The package is then labeled with the product name, serial number, revision number, and date of manufacture. It is then shipped to the customer in a secure, fully insured box.
