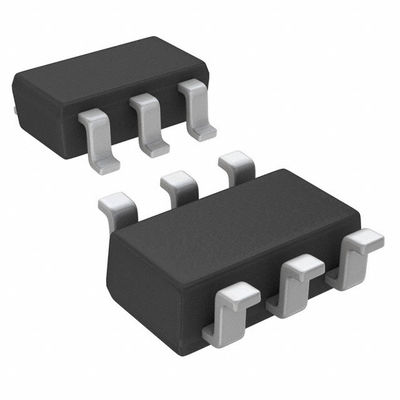

MP1471AGJ-Z Dc Dc Switching Regulators 0.8V 1 Output 3A SOT-23-6 Power IC Chip
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP1471AGJ-Z |
| Minimum Order Quantity | 3000PCS |
| Price | Negotiable |
| Packaging Details | 3000PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 155K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems Inc. | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP1471AGJ-Z | Number Of Outputs | 1 |
| Output Configuration | Positive | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 14.72V | Current - Output | 3A |
| Frequency - Switching | 500KHz | Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | ||
| High Light | dc dc switching regulators,MP1471AGJ-Z,mp1471agj-z datasheet |
||
Product Description
MP1471AGJ-Z Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-6
Product Attributes:
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 14.72V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Base Product Number | MP1471 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1840 |
| 1589-1840-1 | |
| 1589-1840-ND | |
| 1589-1840-2 | |
| 1589-1840-6 | |
| Standard Package | 3000 |
DESCRIPTION
The MP1471A is a high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 3A output current over a wide input supply range, with excellent load and line regulation. The MP1471A has synchronous-mode operation for higher efficiency over the output current-load range.
Current-mode operation provides fast transient response and eases loop stabilization.
Protection features include over-current protection and thermal shutdown.
The MP1471A requires a minimal number of readily-available, standard, external components and is available in a space-saving 6-pin TSOT23 package.
FEATURES
Wide 4.5V-to-16V Operating Input Range
110mΩ/57mΩ Low-RDS(ON) Internal Power MOSFETs
Proprietary Switching-Loss–Reduction Technology
High-Efficiency Synchronous-Mode Operation
Fixed 500kHz Switching Frequency
Internal AAM Power-Save Mode for High Efficiency at Light Load
Internal Soft-Start
Over-Current Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in a 6-pin TSOT-23 package
APPLICATIONS
Game Consoles
Digital Set-Top Boxes
Flat-Panel Television and Monitors
General Purposes
