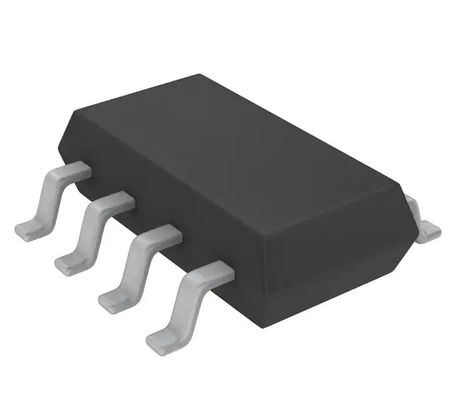

MP1475DJ-LF-Z Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-8
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP1475DJ-LF-Z |
| Minimum Order Quantity | 3000PCS |
| Price | Negotiable |
| Packaging Details | 3000PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 155K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems Inc. | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP1475DJ-LF-Z | Number Of Outputs | 1 |
| Output Configuration | Positive | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 15.2V | Current - Output | 3A |
| Frequency - Switching | 500KHz | Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 | ||
| High Light | MP1475DJ-LF-Z,Buck Switching Regulator IC Positive |
||
Product Description
MP1475DJ-LF-Z Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-8
Product Attributes:
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 15.2V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| Base Product Number | MP1475 |
Additional Resources:
| TRIBUTE | DESCRIPTION |
| Other Names | 1589-1844-6 |
| 1589-1844-ND | |
| 1589-1844 | |
| 1589-1844-1 | |
| 1589-1844-2 | |
| Standard Package | 3000 |
DESCRIPTION
The MP1475 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MP1475 has synchronous mode operation for higher efficiency over the output current load range.
Current-mode operation provides fast transient response and eases loop stabilization.
Full protection features include over-current protection and thermal shut down.
The MP1475 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package
FEATURES
• Wide 4.5V-to-16V Operating Input Range
• 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
• High-Efficiency Synchronous Mode Operation
• Fixed 500kHz Switching Frequency
• Synchronizes from a 200kHz-to-2MHz External Clock
• Power-Save Mode at light load
• Internal Soft-Start
• Power Good Indicator
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Adjustable from 0.8V
• Available in an 8-pin TSOT-23 Package
APPLICATIONS
• Notebook Systems and I/O Power
• Digital Set-Top Boxes
• Flat-Panel Television and Monitors
• Distributed Power Systems
