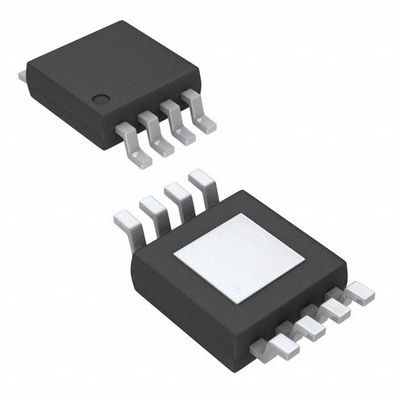

MP1484EN-LF-Z Step Down Switching Regulator Ic 0.925V 1 Output 3A 8-SOIC 0.154" 3.90mm Power IC Chip
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP1484EN-LF-Z |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 2.5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems Inc. | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP1484EN-LF-Z | Product Status | Not For New Designs |
| Number Of Outputs | 1 | Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 23V | Voltage - Output (Min/Fixed) | 0.925V |
| Voltage - Output (Max) | 20V | Current - Output | 3A |
| Frequency - Switching | 340KHz | Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | ||
| Highlight | step down switching regulator ic,MP1484EN-LF-Z,switching regulator ic 0.925V |
||
Product Description
MP1484EN-LF-Z Buck Switching Regulator IC Positive Adjustable 0.925V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Expose
Datasheet:MP1484EN-LF-Z
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 0.925V |
| Voltage - Output (Max) | 20V |
| Current - Output | 3A |
| Frequency - Switching | 340kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Base Product Number | MP1484 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1525-6 |
| MP1484EN-LF-Z-ND | |
| 1589-1525-2 | |
| 1589-1525-1 | |
| Standard Package | 2500 |
DESCRIPTION
The MP1484 is a monolithic synchronous buck regulator. The device integrates top and bottom 85mȍ MOSFETS that provide 3A of continuous load current over a wide operating input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit.
An adjustable soft-start prevents inrush current at turn-on and in shutdown mode, the supply current drops below 1μA.
The MP1484 is PIN compatible to the MP1482 2A/18V/Synchronous Step-Down Converter.
FEATURES
* 3A Continuous Output Current
* Wide 4.75V to 18V Operating Input Range
* Integrated 85mȍ Power MOSFET Switches
* Output Adjustable from 0.925V to 20V
* Up to 95% Efficiency
* Programmable Soft-Start
* Stable with Low ESR Ceramic Output Capacitors
* Fixed 340KHz Frequency
* Cycle-by-Cycle Over Current Protection
* Input Under Voltage Lockout
* Thermally Enhanced 8-Pin SOIC Package
APPLICATIONS
* FPGA, ASIC, DSP Power Supplies
* LCD TV
* Green Electronics/Appliances
* Notebook Computers
Data Picture:https://media.digikey.com/pdf/Data%20Sheets/Monolithic%20Power%20PDF's/MP1484.pdf
