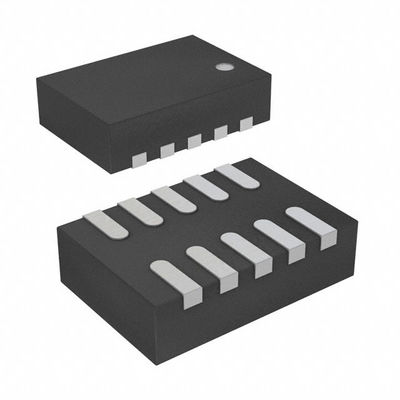

MP1499GD-Z Buck Switching Regulator IC Positive Adjustable 0.807V 1 Output 5A 10-VFDFN
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP1499GD-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - DC DC Switching Regulators |
|---|---|---|---|
| Product Number | MP1499GD-Z | Number Of Voltages Monitored | 1 |
| Voltage - Input (Min) | 4.5V | Oltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.807V | Voltage - Output (Max) | 13V |
| Current - Output | 5A | Frequency - Switching | 500KHz |
| Operating Temperature | -40°C ~ 125°C (TJ) | Package / Case | 10-VFDFN |
| High Light | MP1499GD-Z,Buck Switching Regulator IC Positive Adjustable 0.807V |
||
Product Description
MP1499GD-Z Buck Switching Regulator IC Positive Adjustable 0.807V 1 Output 5A 10-VFDFN
Product Attributes:
| Category | Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.807V |
| Voltage - Output (Max) | 13V |
| Current - Output | 5A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN |
| Supplier Device Package | 10-QFN (3x2) |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1527-6 |
| MP1499GD-Z-ND | |
| 1589-1527-2 | |
| 1589-1527-1 | |
| Standard Package | 5000 |
DESCRIPTION
The MP1499 is a high frequency synchronous rectified step-down switch mode converter with built in internal power MOSFETs. It offers a very compact solution to achieve 5A peak output current over a wide input supply range with excellent load and line regulation. The MP1499 has synchronous mode operation for higher efficiency over output current load range.
Current mode operation provides fast transient response and eases loop stabilization.
Full protection features include over current protection and thermal shut down.
The MP1499 requires a minimum number of readily available standard external components and is available in a space saving 10-pin QFN (2x3mm) package.
FEATURES
• Wide 4.5V to 16V Operating Input Range
• 70mΩ/25mΩ Low RDS(ON) Internal Power MOSFETs
• Proprietary Switching Loss Reduction Technique
• Fixed 500kHz Switching Frequency
• Sync from 200kHz to 2MHz External Clock
• AAM Power Save Mode
• External Soft Start
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Adjustable from 0.8V
• Available in a QFN10 (2x3mm) Package
APPLICATIONS
• Digital Set Top Boxes
• Flat Panel Television and Monitors
• Distributed Power Systems
