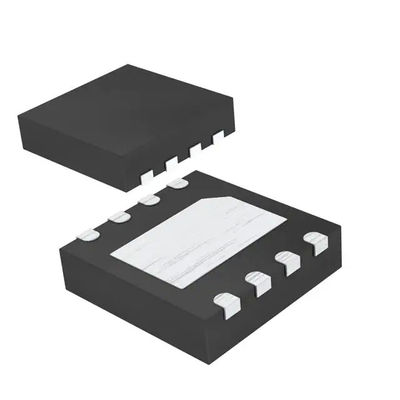

MP20051DQ-LF-Z Linear Voltage Regulator IC 1 Output 1A Power IC Chip 8-QFN 3x3
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP20051DQ-LF-Z |
| Minimum Order Quantity | 5000 PCS |
| Price | Negotiable |
| Packaging Details | 5000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 75K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - Linear |
|---|---|---|---|
| Product Number | MP20051DQ-LF-Z | Number Of Outputs | 1 |
| Voltage - Input (Min) | 0.8V | Voltage - Input (Max) | 5.5V |
| Voltage Dropout (Max) | 0.28V @ 1A | Voltage - Output (Max) | 5V |
| Current - Output | 1A | PSRR | 65dB ~ 33dB (100Hz ~ 1MHz) |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad | ||
| High Light | MP20051DQ-LF-Z,1A Power IC Chip,mp20051dq-lf-z datasheet |
||
Product Description
MP20051DQ-LF-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-QFN (3x3)
Datasheet:MP20051DQ-LF-Z
| Category | Voltage Regulators - Linear |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.28V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 600 µA |
| PSRR | 65dB ~ 33dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) |
| Base Product Number | MP20051 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1548-6 |
| 1589-1548-2 | |
| 1589-1548-1 | |
| MP20051DQ-LF-Z-ND | |
| Standard Package | 5000 |
DESCRIPTION
The MP20051 is a low-dropout linear regulator that supplies up to 1A current with a 140mV dropout voltage. The externally-adjustable output voltage has a range of 0.8V to 5V from an input voltage of 2.5V to 5.5V.
An internal PMOS pass element allows for a low 110μA ground current, making the MP20051 suitable for battery-powered devices. Other features include low-power shutdown, and shortcircuit and thermal protection. The MP20051 is available in 3mm x 3mm 8-pin QFN and SOIC8E packages.
FEATURES
Up to 1A Output Current
Low 140mV Dropout at 1A
Low 110μA Ground Current
Output Voltage Available from 0.8V to 5V
Low Noise: 13μVRMS typical (10Hz to 100kHz)
63dB PSRR @1kHz Stable with Ceramic Capacitor
Excellent Load/Line Transient Response
Current Limiting and Thermal Protection
Available in 3mm x 3mm 8-pin QFN and SOIC8E Packages
APPLICATIONS
Notebook Computers
Cordless Telephones
Cellular Phones
Wireless Communication Equipment
Hand-Held Instruments
