MP2015AGJE-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA TSOT-23-4
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP2015AGJE-Z |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Manufacturer | Monolithic Power Systems (MPS) | Category | Voltage Regulators - Linear |
|---|---|---|---|
| Product Number | MP2015AGJE-Z | Number Of Voltages Monitored | 1 |
| Output Type | Adjustable | Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 1.215V | Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 1.1V@ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA | Current - Supply (Max) | 50 µA |
| PSRR | 55dB (100kHz) | Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | SOT-23-4 Thin, TSOT-23-4 | ||
| High Light | MP2015AGJE-Z,Linear Voltage Regulator IC Positive Adjustable |
||
Product Description

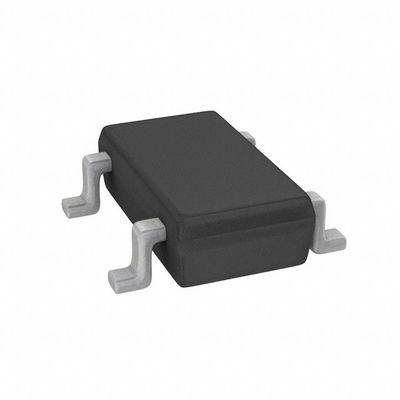

MP2015AGJE-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA TSOT-23-4
Datasheet:MP2015AGJE-Z
| Category | Voltage Regulators - Linear |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 1.215V |
| Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 1.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | 50 µA |
| PSRR | 55dB (100kHz) |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-4 Thin, TSOT-23-4 |
| Supplier Device Package | TSOT-23-4 |
| Base Product Number | MP2015 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 3000 |
DESCRIPTION
The MP2015A is a low power linear regulator that supplies power to systems with high voltage batteries. It includes a wide 2.5V to 24V input range, low dropout voltage and low quiescent supply current. The low quiescent current and low dropout voltage allow operations at extremely low power levels. Therefore, the MP2015A is an ideal for the low power microcontrollers and the battery-powered equipments.
The MP2015A provides wide variety of fixed output voltage options (if request): 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, 5.0V; and also provides the output adjustable option (from 1.215V to 15V).
The regulator output current is internally limited and the device is protected against over-load and over-temperature conditions.
The MP2015A also includes thermal shutdown and current limiting fault protection, and is available in QFN-6 (2mmx2mm), QFN 8(3mmx3mm), and TSOT23-4 packages.
FEATURES
2.5V to 24V Input Range
3.3µA Quiescent Supply Current
Stable With low-value output ceramic capacitor (> 0.47μF)
150mA specified current for QFN-6 and QFN-8 Packages
100mA specified current for TSOT23-4 Packages
700mV Dropout at 150mA Load
Available in Fixed 3.3V Output and Adjustable Output (1.215V to 15V) versions
Output ±2% Accuracy for QFN-6 and QFN-8 Packages
Output ±4% Accuracy TSOT23-4 Packages
Specified current limit
Thermal Shutdown and Short-Circuit Protection
Available in TSOT23-4, QFN-6 (2mmx2mm), or QFN-8 (3mmx3mm) Packages
APPLICATIONS
Portable/Battery-Powered Equipment
Ultra low power Microcontrollers
Cellular Handsets
Recommended Products
