MP2019GN-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA 8-SOIC-EP Power IC Chip

Place of Origin America
Brand Name MPS
Certification RoHS
Model Number MP2019GN-Z
Minimum Order Quantity 2500 PCS
Price Negotiable
Packaging Details 2500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 7.5K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturer Monolithic Power Systems Inc. Category Voltage Regulators - Linear
Product Number MP2019GN-Z Product Status Active
Number Of Outputs 1 Voltage - Supply (Min) 1.2V
Voltage - Supply (Max) 40V Voltage - Output (Min/Fixed) 0.55V
Voltage - Output (Max) 15V Current - Output 300mA
Frequency - Switching 1kHz Operating Temperature -40°C ~ 125°C (TA)
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
High Light

MP2019GN-Z

,

Linear Voltage Regulator IC Positive Adjustable

,

300mA Power IC Chip

Leave a Message
Product Description

MP2019GN-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA 8-SOIC-EP



Features:

 3V to 40V Input Range

 10µA Quiescent Supply Current

 Stable with Low-Value Output Ceramic Capacitor (> 0.47μF)

 300mA Specified Current

 Fixed 5V, 3.3V, and Adjustable Output (1.2 V to 15 V) Versions

 Output ±2% Accuracy Over Temperature

 Specified Current Limit

 Power Good

 Programmable Power Good Delay

 Thermal Shutdown and Short-Circuit Protection

 -40°C to +125°C Specified JunctionTemperature Range

 Available in a SOIC-8 EP Package

Description:

The MP2019 is a low-power linear regulator that supplies power to systems with highvoltage batteries. It includes a wide 3V to 40V input range, low-dropout voltage, and a low quiescent-supply current. The low quiescent current and low dropout voltage allow operations at extremely low-power levels. Therefore, the MP2019 is ideal for low-power microcontrollers and battery-powered equipment.

The MP2019 provides a wide variety of fixed output-voltage options (if requested): 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, and 5.0V; also, it provides the output-adjustable option (from 1.25V to 15V).

The regulator output current is limited internally, and the device is protected against short-circuit, over-load, and over-temperature conditions.

The MP2019 includes thermal shutdown (TSD), current-limiting fault protection, and is available in a SOIC-8 EP package.



APPLICATIONS

 Industrial/Automotive Applications

 Portable/Battery-Powered Equipment

 Ultra-Low Power Microcontrollers

 Cellular Handsets

 Medical Imaging



Product Attributes:

Category Voltage Regulators - Linear
Mfr Monolithic Power Systems Inc.
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) 15V
Voltage Dropout (Max) 0.55V @ 150mA
Current - Output 300mA
Current - Quiescent (Iq) 95 µA
PSRR 45dB (1kHz)
Control Features Enable, Power Good
Protection Features Over Temperature, Short Circuit
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package 8-SOIC-EP
Base Product Number MP2019



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names MP2019GN-Z-ND
  1589-1557-6
  1589-1557-2
  1589-1557-1
Standard Package 2500

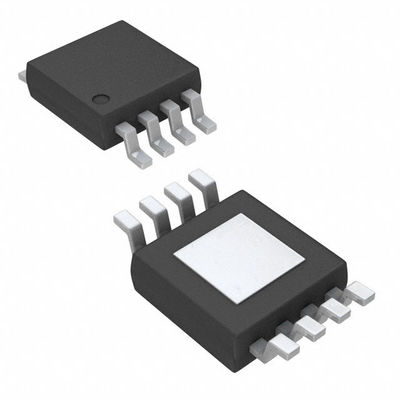

Data Picture:

MP2019GN-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA 8-SOIC-EP Power IC Chip 0
