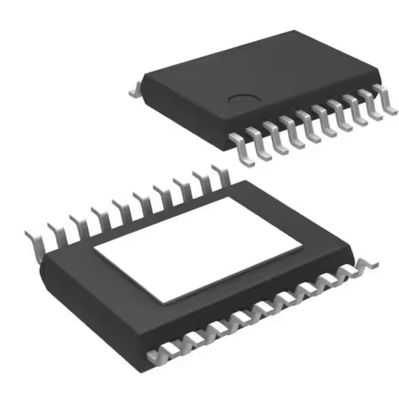

MP2908AGF-Z Ic Step Down Voltage Regulator Circuit 20-TSSOP-EP Power IC Chip
| Place of Origin | America |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP2908AGF-Z |
| Minimum Order Quantity | 2500PCS |
| Price | Negotiable |
| Packaging Details | 2500PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 37K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Monolithic Power Systems Inc. | Category | DC DC Switching Controllers |
|---|---|---|---|
| Number Of Outputs | 1 | Voltage - Supply (Vcc/Vdd) | 4V ~ 60V |
| Frequency - Switching | 1MHz | Duty Cycle (Max) | 99.5% |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP | ||
| High Light | MP2908AGF-Z,ic step down voltage regulator,step down regulator circuit |
||
Product Description
MP2908AGF-Z Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-TSSOP-EP
Features:
• Wide 4V to 60V Operating Input Range
• Dual N-Channel MOSFET Driver
• 0.8V Voltage Reference with ±1.5% Accuracy Over Temperature
• Low Dropout Operation: Maximum Duty Cycle at 99.5%
• Programmable Frequency Range: 100kHz - 1000kHz
• External Sync Clock Range: 100kHz1000kHz
• 180º Out-of-Phase SYNCO
• Programmable Soft Start
• Power Good Output Voltage Monitor
• Selectable Cycle-by-Cycle Current Limit
• Output Over-Voltage Protection (OVP)
• Over-Current Protection (OCP)
• Internal LDO with External Power Supply Option
• Programmable CCM, AAM Mode
• TSSOP20-EP and QFN-20 (3mmx4mm) Packages
Description:
The MP2908A is a high-voltage, synchronous step-down controller that directly steps down voltages from up to 60V. The MP2908A uses PWM current control architecture with accurate cycle-by-cycle current limiting and is capable of driving dual N-channel MOSFETs.
Advanced asynchronous mode (AAM) enables non-synchronous operation to optimize lightload efficiency.
The operating frequency of the MP2908A can be programmed by an external resistor or synchronized to an external clock for noisesensitive applications. Full protection features include precision output over-voltage protection (OVP), output over-current protection (OCP), and thermal shutdown.
The MP2908A is available in TSSOP20-EP and QFN-20 (3mmx4mm) packages.
Product Attributes:
| Category | DC DC Switching Controllers |
| Mfr | Monolithic Power Systems Inc. |
| Product Status | Active |
| Output Type | Adjustable |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 60V |
| Frequency - Switching | 1MHz |
| Duty Cycle (Max) | 99.5% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Base Product Number | MP2908 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names | 1589-1624-6 |
| 1589-1624-2 | |
| MP2908AGF-Z-ND | |
| 1589-1624-1 | |
| Standard Package | 2500 |
Data Picture:
