MP8802DJ-3.3-LF-Z Linear Voltage Regulator Circuit IC Positive Adjustable Fixed 1 Output 250mA TSOT-23-5
| Place of Origin | Monolithic Power Systems Inc. |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MP8802DJ-3.3-LF-Z |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 3K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | MP8802DJ-3.3-LF-Z | Manufacturer | Monolithic Power Systems Inc. |
|---|---|---|---|
| Category | Voltage Regulators - Linear | Output Type | Positive |
| Number Of Outputs | 1 | Input Voltage-Max | 6.5V |
| Input Voltage-Min | 1.25V (3.3V) | Output Voltage-Max | 5V |
| Output Voltage-Min | 0.19V @ 250mA (Typ), | Output Current | 250mA |
| Switching Frequency | 70db ~ 30dB (1kHz ~ 1MHz) | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| High Light | MP8802DJ-3.3-LF-Z,linear regulator ic,linear regulator chip |
||
Product Description
MP8802DJ-3.3-LF-Z Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 250mA TSOT-23-5
Quick Detail:
|
Manufacturer
|
Monolithic Power Systems Inc.
|
|
Manufacturer Product Number
|
MP8802DJ-3.3-LF-Z
|
|
Description
|
IC REG LIN POS ADJ 250MA TSOT23
|
|
Detailed Description
|
Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 250mA TSOT-23-5
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Voltage Regulators - Linear
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Product Status
|
Active
|
|
Output Configuration
|
Positive
|
|
Output Type
|
Adjustable (Fixed)
|
|
Number of Regulators
|
1
|
|
Voltage - Input (Max)
|
6.5V
|
|
Voltage - Output (Min/Fixed)
|
1.25V (3.3V)
|
|
Voltage - Output (Max)
|
5V
|
|
Voltage Dropout (Max)
|
0.19V @ 250mA (Typ), -
|
|
Current - Output
|
250mA
|
|
Current - Quiescent (Iq)
|
155 µA
|
|
PSRR
|
70db ~ 30dB (1kHz ~ 1MHz)
|
|
Control Features
|
Enable
|
|
Protection Features
|
Over Temperature
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SOT-23-5 Thin, TSOT-23-5
|
|
Supplier Device Package
|
TSOT-23-5
|
|
Base Product Number
|
MP8802
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
1589-1941-6
|
|
1589-1941-ND
|
|
|
1589-1941
|
|
|
1589-1941-2
|
|
|
1589-1941-1
|
|
| Standard Package | 3000 |
Description:
The MP8802 is a low-noise, low-dropout linear regulator. It operates from 2.7V to 6.5V input voltage,
and regulates the output voltage with 2% accuracy at 2.5V, 2.85V, 3.3V, or from 1.25V to 5V.
The MP8802 can supply up to 250mA of load current. The MP8802 features thermal overload protection.
It is available in a 5-pin TSOT23-5 package.
FEATURES
• Low 250mV Dropout at 250mA Output
• 2% Accurate Output Voltage
• Fixed Output Voltage Options of 2.5V, 2.85V or 3.3V
• Adjustable Output Voltage Option from 1.25V to 5V using an External Resistor Divider
• Up to 6.5V Input Voltage
• High PSRR o 70dB at 1KHz o 30dB at 1MHz
• Better Than 0.001%/mA Load Regulation
• Stable With Low-ESR Output Capacitor
• Low 125μA Ground Current
• Internal Thermal Protection
APPLICATIONS
• 802.11 PC Cards
• Mobile Handset PLL Power
• Audio Codec Power
|

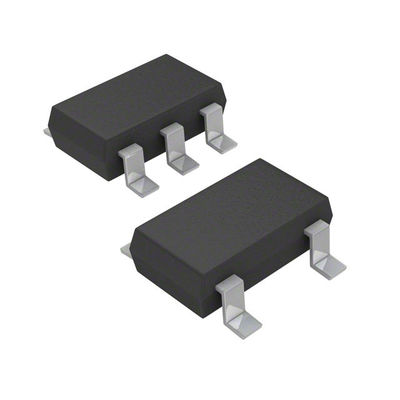

SOT-23-5 Thin, TSOT-23-5
|
