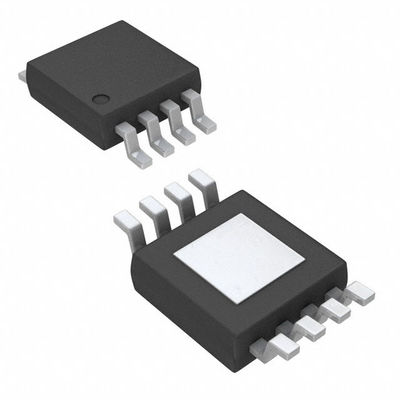

MP9486AGN-Z Ic Buck Boost Converter 5V 1 Output 1A 8-SOIC Power Supply Ic Chip

Place of Origin Monolithic Power Systems Inc.
Brand Name MPS
Certification RoHS
Model Number MP9486AGN-Z
Minimum Order Quantity 2500 PCS
Price Negotiable
Packaging Details 2500 PCS/Tape
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Number MP9486AGN-Z Manufacturer Monolithic Power Systems (MPS)
Category Voltage Regulators - DC DC Switching Regulators Package Tape & Reel (TR)
Output Type Adjustable Number Of Outputs 1
Input Voltage-Max 95V Input Voltage-Min 4.5V
Output Oltage-Max 5V Output Voltage-Min 1A
Topology BUCK Switching Frequency Up ~ 1MHz
Operating Temperature -40°C ~ 125°C Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad Supplier Device Package 8-SOIC-EP
High Light

power supply ic chip

,

Ic Buck Boost Converter 5V

,

mp9486agn-z datasheet

Leave a Message
Product Description

MP9486AGN-Z Buck Switching Regulator IC Positive Fixed 5V 1 Output 1A 8-SOIC

FEATURES

 Wide 4.5V to 100V Input Range

 3.5A Typical Peak Switching Current Limit

 Hysteretic Control: No Compensation

 Up to 1MHz Switching Frequency

 PWM Dimming Control Input for LED Application

 Short-Circuit Protection (SCP) with Integrated High-Side MOSFET

 170μA Quiescent Current

 Thermal Shutdown

 Available in a SOIC-8 Package with an Exposed Pad

Quick Detail:

Manufacturer
Monolithic Power Systems Inc.
Manufacturer Product Number
MP9486AGN-Z
Description
IC REG 100V INPT 3.5A SWITCH CUR
Detailed Description
Buck Switching Regulator IC Positive Fixed 5V 1 Output 1A 8-SOIC (0.154", 3.90mm Width) Exposed Pad



Product Attributes:

TYPE
DESCRIPTION
Category
Voltage Regulators - DC DC Switching Regulators
Mfr
Monolithic Power Systems Inc.
Series
Automotive
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Fixed
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
95V
Voltage - Output (Min/Fixed)
5V
Current - Output
1A
Frequency - Switching
Up ~ 1MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
8-SOIC-EP
Base Product Number
MP9486



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names
1589-1747-6
MP9486AGN-Z-ND
1589-1747-2
1589-1747-1
Standard Package 2500



DESCRIPTION:

The MP9486A is a high-voltage, step-down, switching regulator that delivers up to 1A of continuous current to the load. It integrates a high-side, high-voltage, power MOSFET with a current limit of 3.5A, typically. The wide 4.5V to 100V input range accommodates a variety of step-down applications, making it ideal for automotive, industry, and lighting applications. Hysteretic voltage-mode control is employed for very fast response. MPS’s proprietary feedback control scheme minimizes the number of required external components. The switching frequency can be up to 1MHz, allowing for small component size. Thermal shutdown and short-circuit protection (SCP) provide reliable and fault-tolerant operations. A 170µA quiescent current allows the MP9486A to be used in battery-powered applications. The MP9486A is available in a SOIC-8 package with an exposed pad.

Datasheet:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP9486AGN-Z/document_id/3749/

MP9486AGN-Z  Ic Buck Boost Converter 5V 1 Output 1A 8-SOIC Power Supply Ic Chip 0
