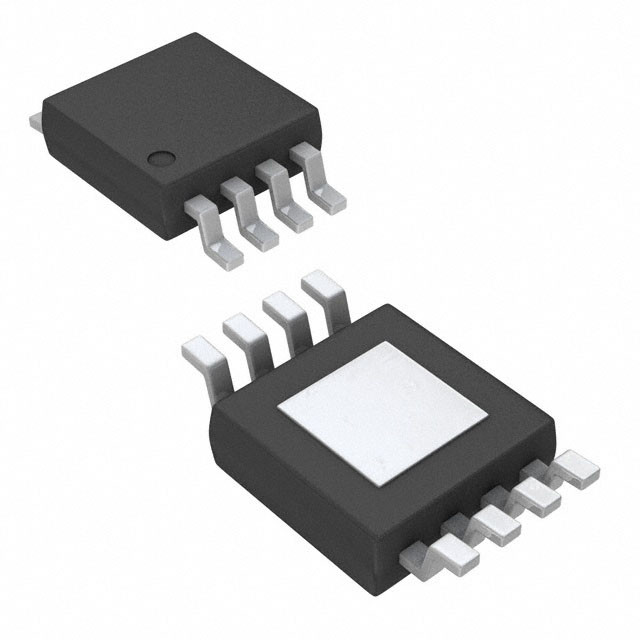

MPQ4569GN-AEC1-Z Mps Monolithic Power Systems 1V 1 Output 300mA 8-SOIC
| Place of Origin | Monolithic Power Systems Inc. |
|---|---|
| Brand Name | MPS |
| Certification | RoHS |
| Model Number | MPQ4569GN-AEC1-Z |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 10K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Number | MPQ4569GN-AEC1-Z | Manufacturer | Monolithic Power Systems (MPS) |
|---|---|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators | Output Type | Adjustable |
| Number Of Outputs | 1 | Input Voltage-Max | 75V |
| Input Voltage-Min | 4.5V | Output Oltage-Max | 67.5V |
| Output Voltage-Min | 300mA | Topology | BUCK |
| Switching Frequency | 600KHz~1MHz | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP | ||
| High Light | MPQ4569GN-AEC1-Z,monolithic power solutions,mps monolithic power systems |
||
Product Description
MPQ4569GN-AEC1-Z Buck Switching Regulator IC Positive Adjustable 1V 1 Output 300mA 8-SOIC
Quick Detail:
|
Manufacturer
|
Monolithic Power Systems Inc.
|
|
Manufacturer Product Number
|
MPQ4569GN-AEC1-Z
|
|
Description
|
IC REG BUCK ADJ 300MA 8SOIC
|
|
Detailed Description
|
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 300mA 8-SOIC (0.154", 3.90mm Width) Exposed Pad
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
Voltage Regulators - DC DC Switching Regulators
|
|
Mfr
|
Monolithic Power Systems Inc.
|
|
Series
|
Automotive, AEC-Q100
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
4.5V
|
|
Voltage - Input (Max)
|
75V
|
|
Voltage - Output (Min/Fixed)
|
1V
|
|
Voltage - Output (Max)
|
67.5V
|
|
Current - Output
|
300mA
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width) Exposed Pad
|
|
Supplier Device Package
|
8-SOIC-EP
|
|
Base Product Number
|
MPQ4569
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 2500 |
Description:
The MPQ4569 is a step-down switching regulator with integrated high-side/low-side, high-voltage power MOSFETs. It provides a highly efficient output of up to 0.3A.
The wide 4.5V to 75V input range accommodates a variety of step-down applications in automotive environment. A 5μA shutdown mode quiescent current in full temperature range is good for battery-powered applications.
It allows for high power conversion efficiency over a wide load range by scaling down the switching frequency under light-load condition to reduce the switching and gate driver losses.
The switching frequency during start-up and short circuit also can be scaled down to prevent inductor current runaway. Thermal shutdown provides reliable, fault-tolerant operation.
The MPQ4569 is available in QFN-10 (3mmx3mm) and SOIC-8 EP packages.
FEATURES
20μA Quiescent Current (Active mode)
Wide 4.5V to 75V Operating Input Range
1.2Ω/0.45Ω Internal Power MOSFETs
Programmable Soft-Start
FB-Tolerance: 1% at Room Temperature; 2% at Full Temperature.
Adjustable Output Voltage
1V Reference Voltage Output for QFN Package
Low Shutdown Mode Current: 5μA
Available in QFN-10 (3mmx3mm) and SOIC-8 EP Packages
Available in AEC-Q100 Grade 1
APPLICATIONS
Automotive Systems
Industrial Power Systems
Distributed Power Systems
Battery Powered Systems
