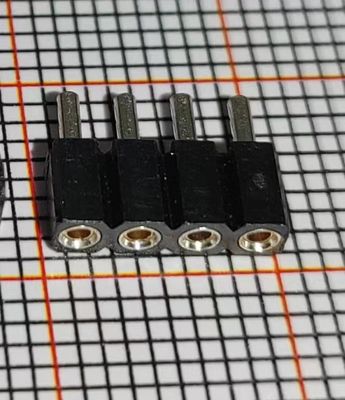

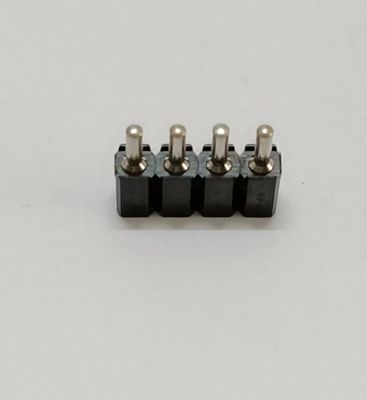

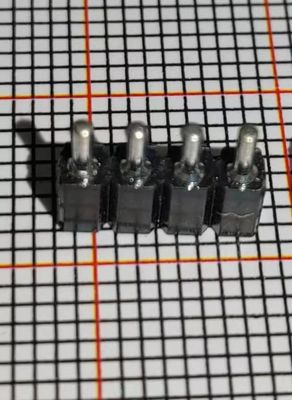

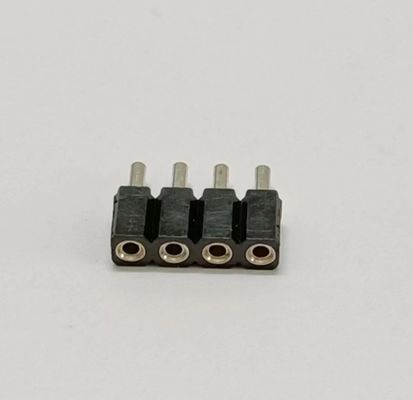

1 X 4 Pin Female Connector Ic 2.54mm Smt Pin Header Strip
| Place of Origin | CHINA |
|---|---|
| Brand Name | Terastor |
| Certification | RoHS |
| Model Number | 2.54-1*4P Female |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Bag |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 100K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Catalogue | Female Header | Rows | Single Row |
|---|---|---|---|
| Pitch | 2.54mm | Plastic Height | 4.2mm |
| Pin Length | 7.4mm | Jack Diameter | 1.27mm |
| Jack Structure | 1*4P | Jack Type | Round Hole |
| Jack Direction | Top | Installation Type | In-line |
| Contact Material | Inner Gold And Outer Tin | Plastic Material | PPS |
| High Light | 4 pin female connector,1 x 4 pin female header,2.54 female header |
||
Product Description
Terastor Round hole socket/Female Header 2.54mm 1*4P
Technical Data
Materlal:
Pin(outer sleeve):Brass,machined CuZn38Pb2
Plating(outer sleeve) :TinPlated:2m/80p~NI5pm/200p~Sn
Gold Plated:2um /80u Ni.0.8p gold
Plating(Contact ):2pm/80p NI,gold or Tin plated
Insuiator:PPS UL94V-0Cllp(Contact 6 Flnger);Beryllium copper, heat teated
Electrical:
Current rating:3Amps/contact max.
Contact resistance:≤4mQ/contact
Insuiation resistance:>1000MQ at V=100V
Operaing voitage:60VAC/DC
Mechanical:
Average Insertion force with steel pin of e0.432:<140gAverage withdrawal force with steel pin of e0,432:>25gMechanical ligecycle:min 200
Operalingtemperature:-40C to+105”CSoldering temperature:+255”C
