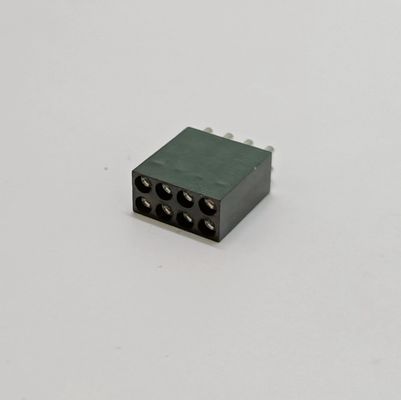

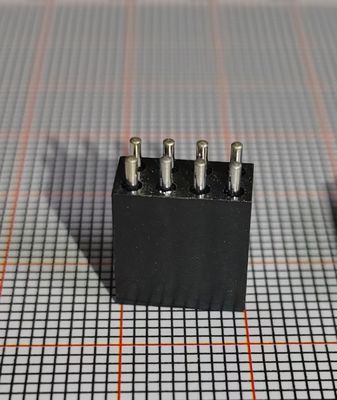

2x4 Smd Female Header Connector Right Angle 2.54 Pitch 8 Pin Header Connector

Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.54-2*4P Female
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Catalogue Female Header Rows Double Row
Pitch 2.54mm Plastic Height 11.0mm
Total Length 14mm Jack Diameter 1.27mm
Jack Structure 2*4P Jack Type Round Hole
Jack Direction Top Installation Type In-line
Contact Material Inner Gold And Outer Tin Plastic Material Blue PPS
High Light

2.54 mm header connector

,

2.54 mm right angle header

,

2.54 pitch pin header

Leave a Message
Product Description

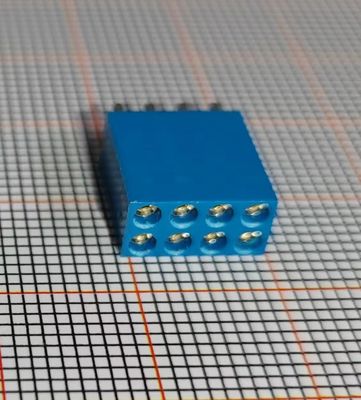

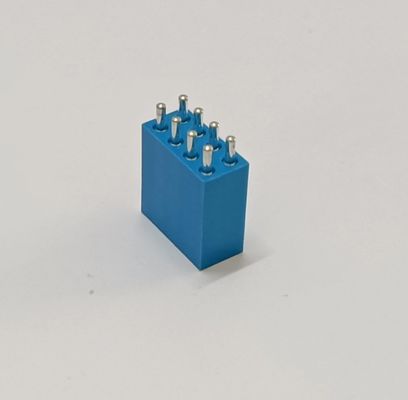

Terastor Round hole socket/Female Header 2.54mm 2*4P

Pin(outer sleeve):Brass,machined CuZn38Pb2Plating(outer sleeve):Tin Plated:2um/80u"NI,5um/200u~SnGold Plated:2um"/80uNi,0.8u”goldPlating(Contact ):2um/80u"NI,gold or Tin platedInsuiator:PPS UL94V-0
Cllp(Contact 6 FInger):Beryllium copper,heat teated
Electrical:
Current rating:3Amps/contact max.Contact resistance:<4mQ/contactInsuiation resistance:>1000MQat Y=100VOperaing voltage:60VAC/DC
Mechanical:
Average Insertion force with steel pin of e0.66:<140gAverage withdrawal force with steel pin of e0.66:>25gMechanical lige cycle:min 200Operaling temperature:-40°C to+105”CSoldering temperature:+255°C
