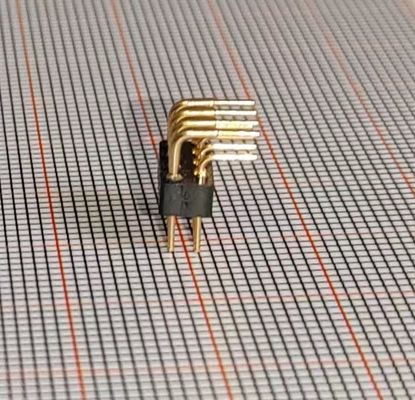

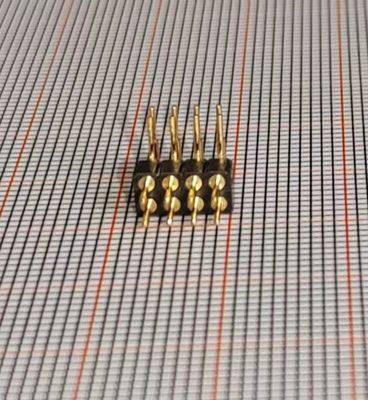

8 Pin 2x4 Pin Header 2mm Pitch Terastor Round Hole Double Bend 90 Degrees

Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.0-2*4P Pin
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Catalogue Pin Header Rows Double Row
Pitch 2.0mm Plastic Height 2.8mm
Pin Length 12.1/16.1mm Jack Structure 2*4P
Installation Type In-line Contact Material Gilded
Plastic Material PPS
High Light

8 pin female header


pin header 90 degree


8 pin header female

Leave a Message
Product Description

Terastor Round hole pin/Pin Header 2.0mm 2*4P Double bend 90 degrees

Pin: Brass,C3604 plating: Tin :2μm/801" nickel,5m/200 tin gold :2um/80u" nickel,0.8u" gold Flame retardant grade :PPS UL94Y-0 Electrical performance rated current :3Amps/contact max contact resistance :≤20mQ/contact Insulation resistance :≥1000MQ at V=100V Working voltage :60VAC/DC
Physical properties: Mechanical life :min 500 Operating temperature range :-40°C tot105 'C Welding temperature :+255 "C

8 Pin 2x4 Pin Header 2mm Pitch Terastor Round Hole Double Bend 90 Degrees 0
