3x27P 2.54 Mm Pitch Female Pin Connector IC 2.54 Mm Female Header Strip

Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.54-3*27P Female
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Catalogue Female Header Rows Three Rows
Pitch 2.54mm Plastic Height 4.2mm
Pin Length 7.4mm Jack Diameter 1.27mm
Jack Structure 3*27P Jack Type Round Hole
Jack Direction Top Installation Type In-line
Contact Material Inner Gold And Outer Tin Plastic Material PPS
High Light

female pin header 2.54 mm


female header 2.54 mm


2.54 mm pitch female header

Leave a Message
Product Description

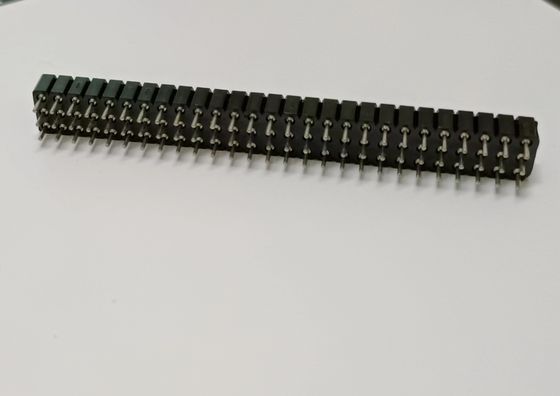

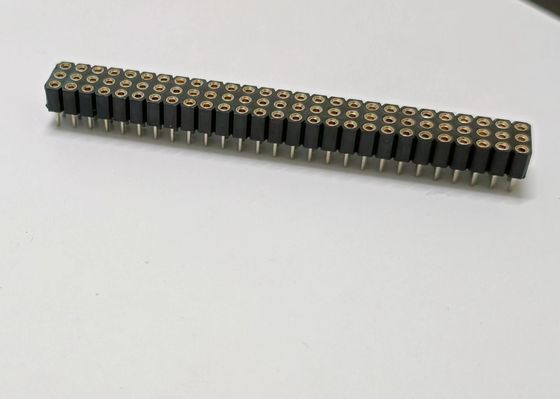

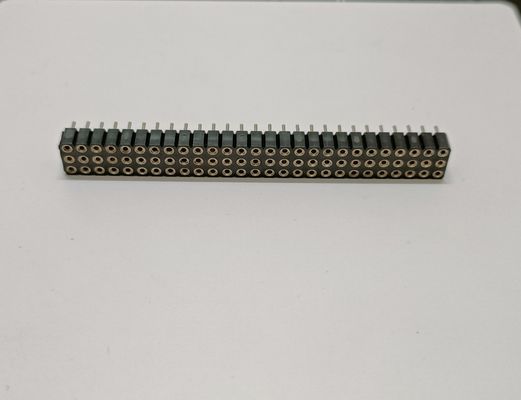

Terastor Round hole socket/Female Header 2.54mm 3*27P

Pin(outer sleeve):Brass,machined CuZn38Pb2
Plating(outer sleeve):
Tin Plated:2m/80pNI,5pm/200p"Sn
Gold Plated:2p"/80p~Ni,0.8p”gold
Plating(Contact ):2pm/80p"NI,gold or Tin platedInsuiator:PPS UL94V-0Cllp(Contact 6 Flnger):Beryllium copper,heat teated
Electrical:Current rating:3Amps/contact max.Contact resistance: mQ/contact
Insuiation resistance:>1000M0 at V-100VDleiectrle Withstanding Voltage:1000V AV Min
Operaling voltage:60VAC/DC
Mechanical:Average Insertlon force with steel pin of e0.66mm/0.38":<250gAverage withdrawal force with steel pin of e0.66mm/0.38":<70gMechanlcal lige cycle:min 200Operaling temperature:-40” C to+105”CSoldering temperature:+255%C

3x27P 2.54 Mm Pitch Female Pin Connector IC  2.54 Mm Female Header Strip 0
