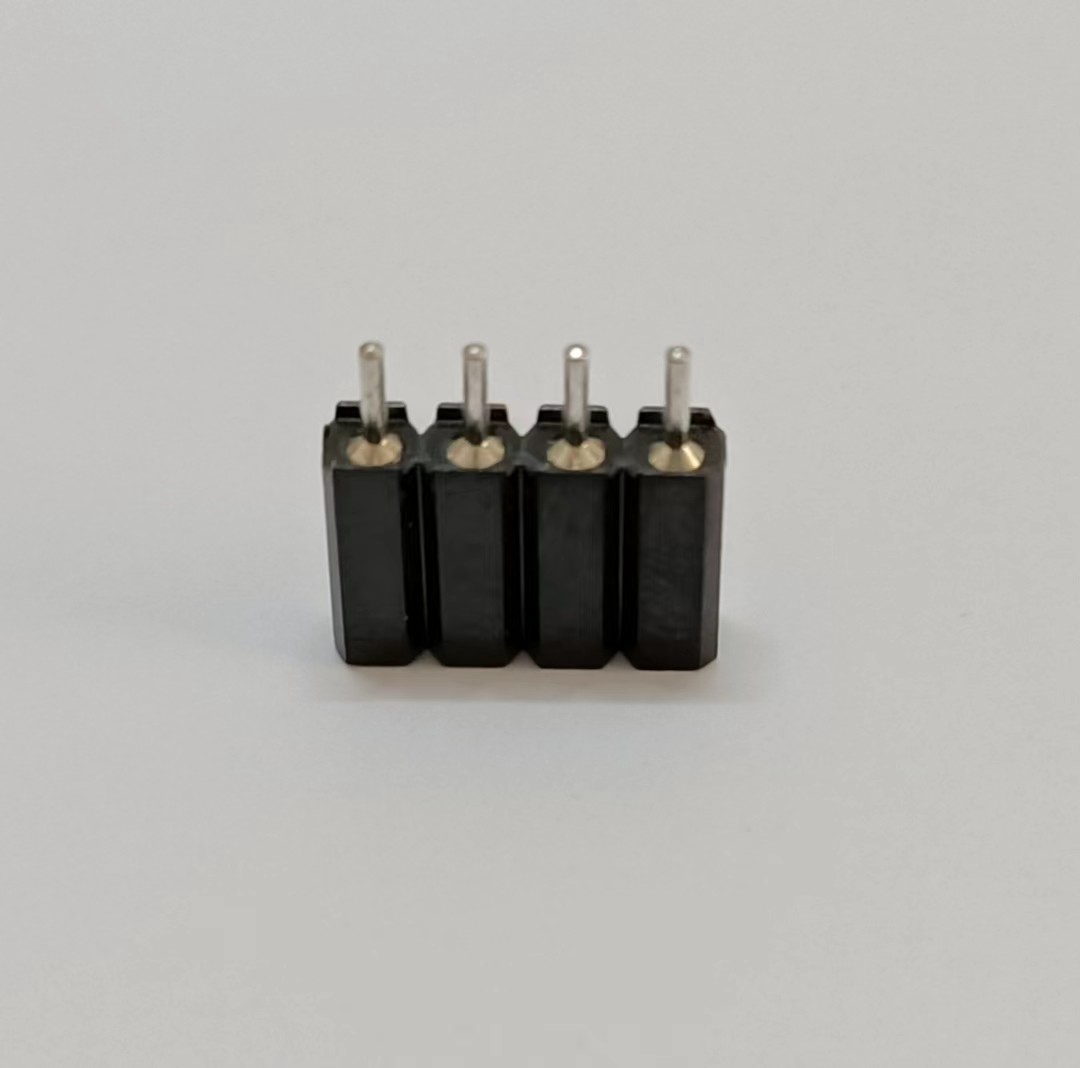

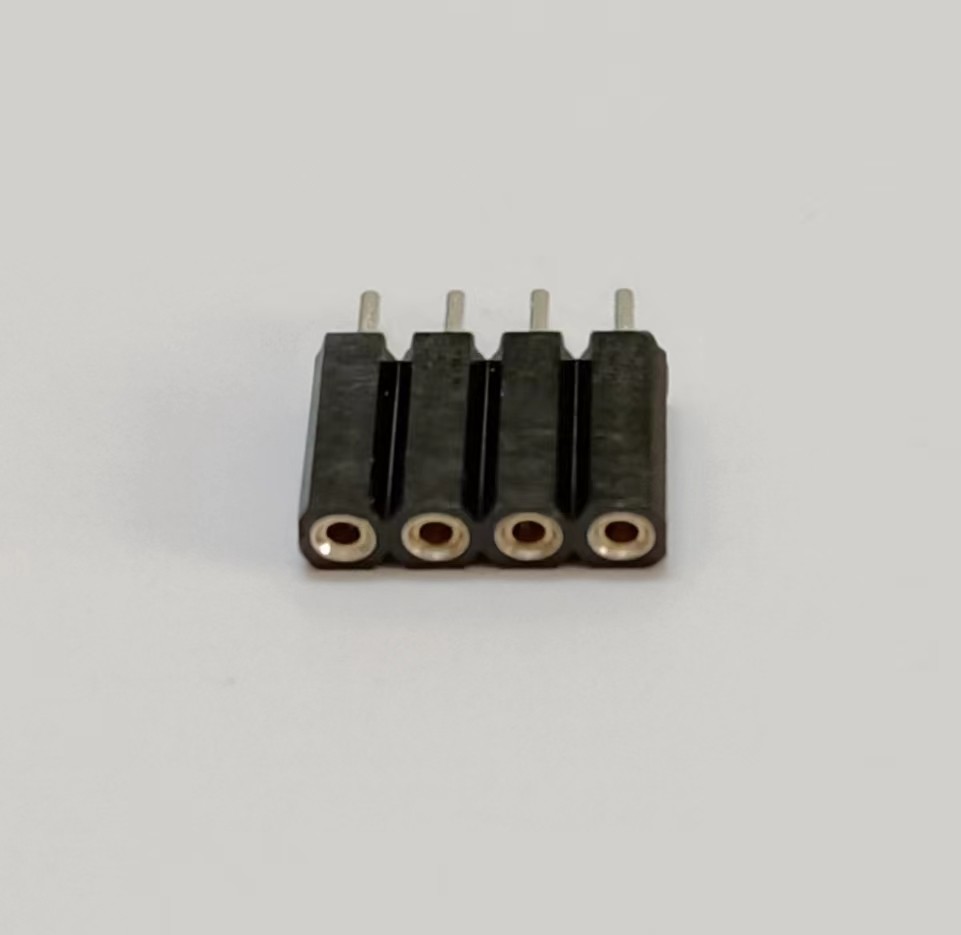

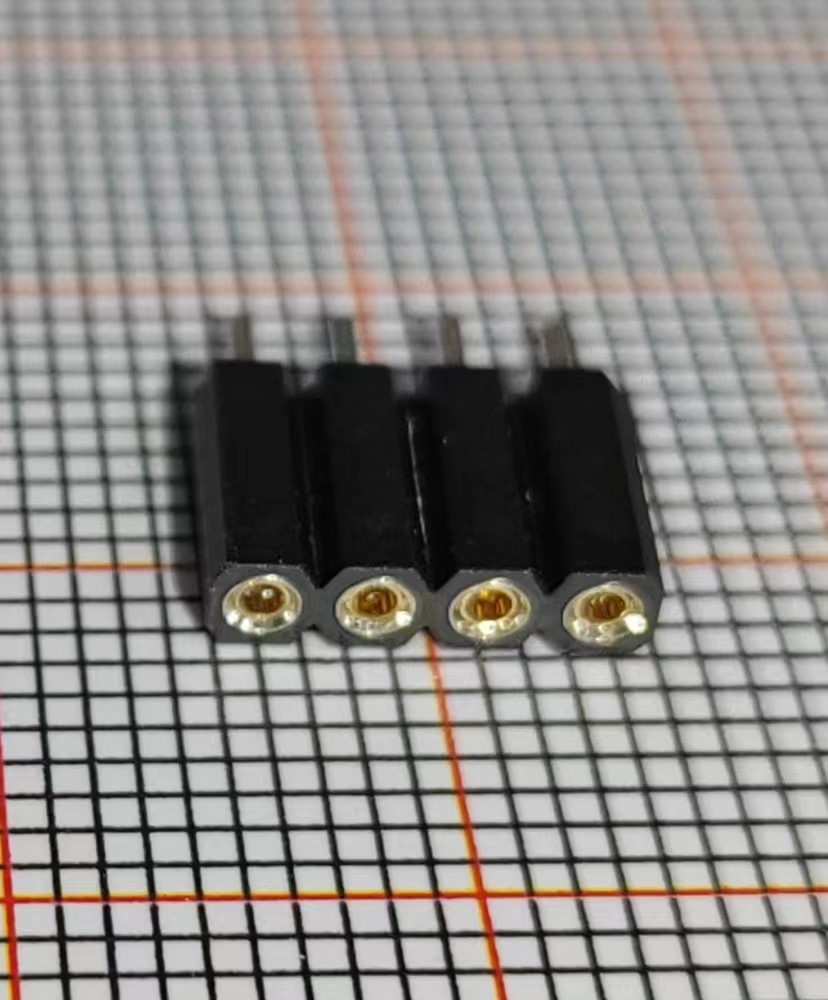

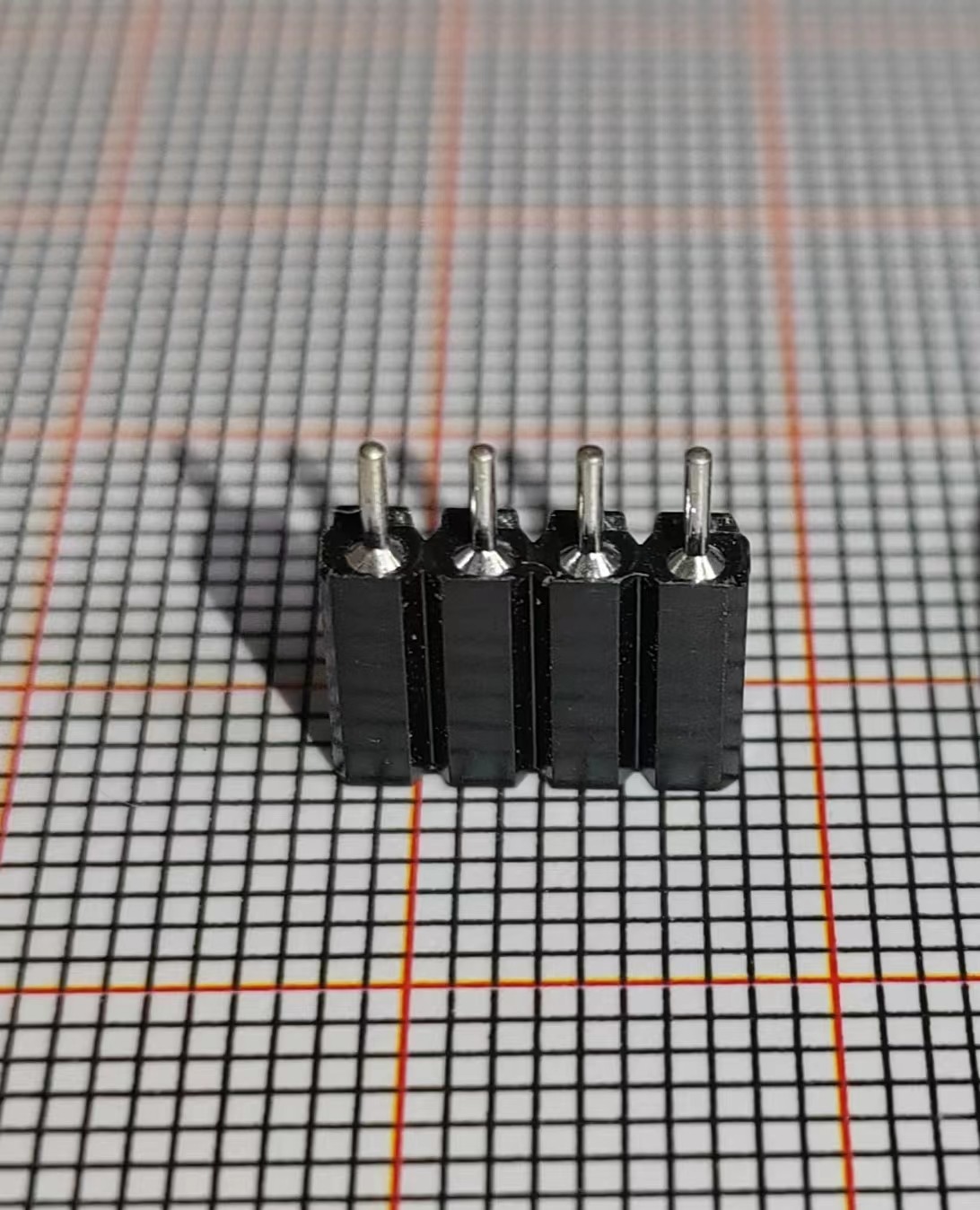

1x4 4 Pin Header Connector Female Pcb 2.54mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | Terastor |
| Certification | RoHS |
| Model Number | 2.54-1*4P Female |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Bag |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 100K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Catalogue | Female Header | Rows | Single Row |
|---|---|---|---|
| Pitch | 2.54mm | Plastic Height | 7.0mm |
| Pin Length | 10.0mm | Jack Diameter | 1.27mm |
| Jack Structure | 1*4P | Jack Type | Round Hole |
| Jack Direction | Top | Installation Type | In-line |
| Contact Material | Inner Gold And Outer Tin | Plastic Material | PPS |
| High Light | pcb female header,4 pin female header,2.54 female header |
||
Product Description
Terastor Round hole socket/Female Header 2.54mm 1*4P
Pin(outer sleeve):Brass,machined CuZn38Pb2Plating(outer sleeve):Tin Plated:2pm/80pNI5pm/200p"SnGold Plated:2pm~/80p~Ni,0.8p”goldPlating(Contact ):2pm/80p"NI,gold or Tin platedInsuiator:PPS UL94V-0
Cllp(Contact 6 FInger):Beryllium copper,heat teated
Electrical:
Current rating:3Amps/contact max.Contact resistance:≤10mQ/contactInsuiation resistance:>1000MQ at V=100VOperaing voitage:60VAC/DC
Mechanical:Average Insertion force with steel pin of 90.66:<140gAverage withdrawal force with steel pin of g066:>25gMechanical lige cycle:min 200Operaling temperature:-40°C to+105°CSoldering temperature:+255C
