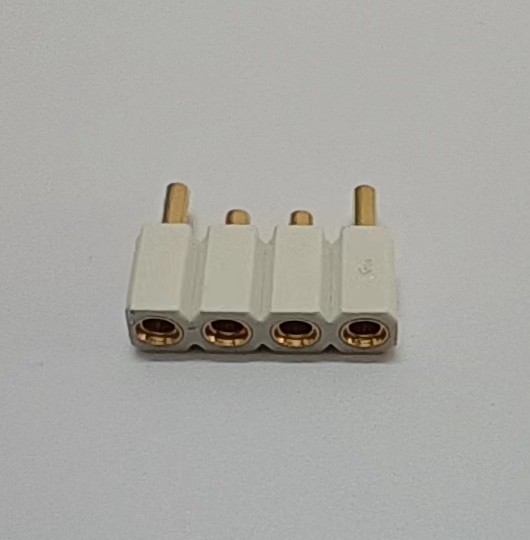

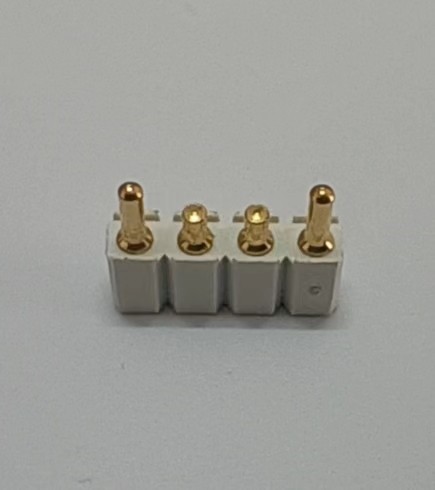

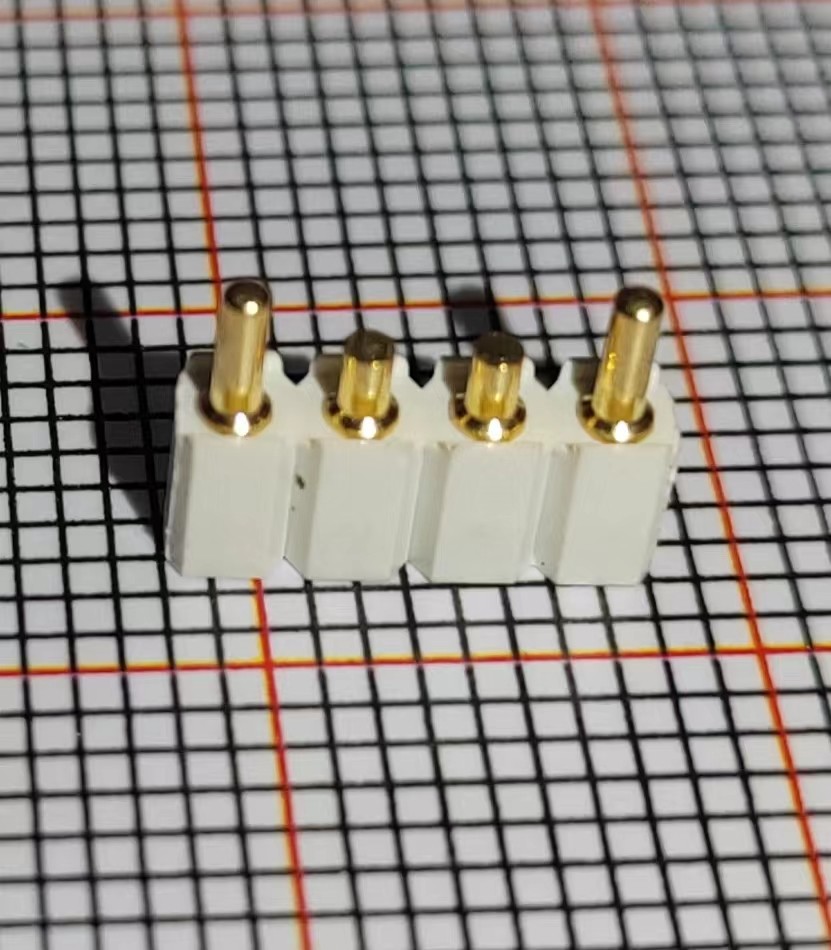

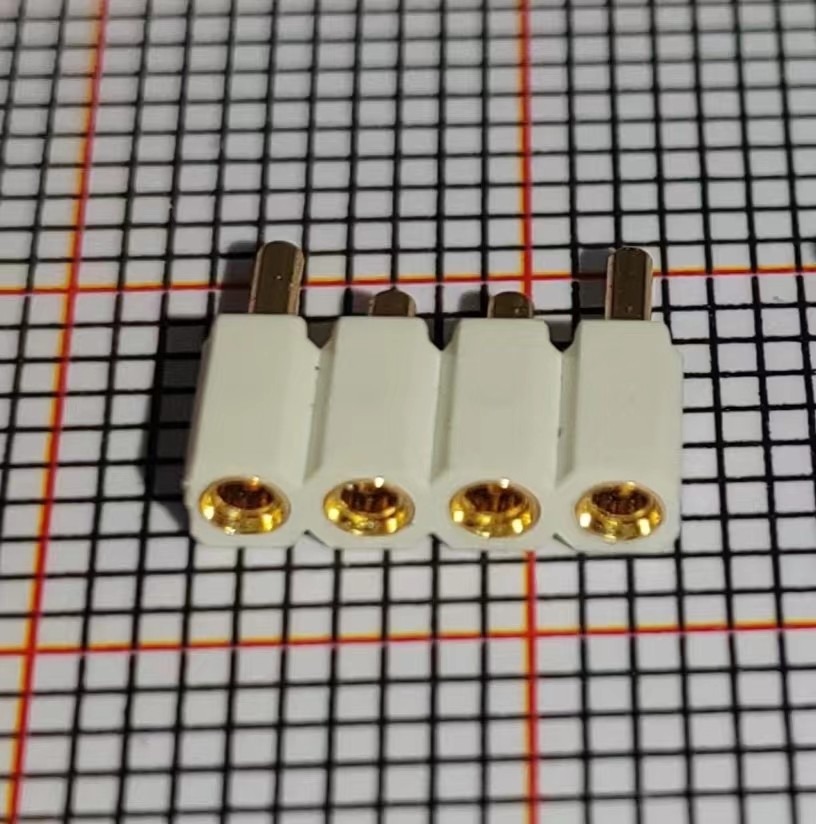

Surface Mount Pin Header Connector IC 4 Pin Female Header 2.54mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | Terastor |
| Certification | RoHS |
| Model Number | 2.54-1*4P Female |
| Minimum Order Quantity | 1000 PCS |
| Price | Negotiable |
| Packaging Details | 1000 PCS/Bag |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 100K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Catalogue | Female Header | Rows | Single Row |
|---|---|---|---|
| Pitch | 2.54mm | Plastic Height | 4.2mm |
| Pin Length | 7.4/5.8mm | Jack Diameter | 1.4mm |
| Jack Structure | 1*4P | Jack Type | Round Hole |
| Jack Direction | Top | Installation Type | In-line |
| Contact Material | Gilded | Plastic Material | White 6T |
| Pin(outer Sleeve) | Brass | Plating(outer Sleeve) | Tin Plated:2ym/80y“NI,5ym/200ySnGold Plated:2ym"/80p~Ni,0.8p |
| Gold Or Tin PlatedInsuiator | PA6T UL94Y-0 | Cllp(Contact 6 Flnger) | Beryllium Copper,heat Teated |
| Current Rating | 5Amps/contact Max | Contact Resistance | ≤20mQ/contact |
| Operaling Temperature | -40℃to+105℃ | Soldering Temperature | +255℃ |
| High Light | female connector 4 pin,female pin connector 2.54 mm,4 pin header |
||
Product Description
Terastor Round hole socket/Female Header 2.54mm 1*4P Special pin
Technical DataMaterlal:
Pin(outer sleeve);Brass, machined CuZn38Pb2
Plating(outer sleeve):Tin Plated:2ym/80y“NI,5ym/200ySnGold Plated:2ym"/80p~Ni,0.8p”goldPlating(Contact );2ym/80p~NI,gold or Tin platedInsuiator:PA6T UL94Y-0
Cllp(Contact 6 Flnger):Beryllium copper,heat teated
Electrical:Current rating:5Amps/contact max,Contact resistance:≤20mQ/contact
Insuiation resistance:>1000MQ at Y=100YOperaing voitage:60VAC/DC
Mechanical:Average Insertion force with steel pin of @1.00:<350gmAverage withdrawal force with steel pin of @1.00:>50guMechanical lige cycle:min 500Operaling temperature:-40”C to+105”CSoldering temperature:+255”C
