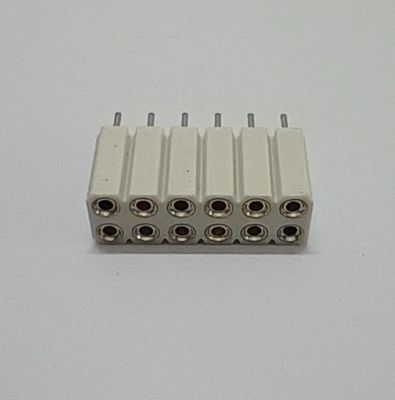

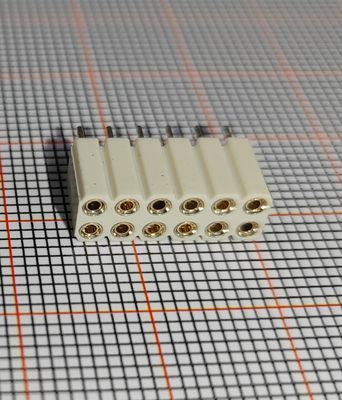

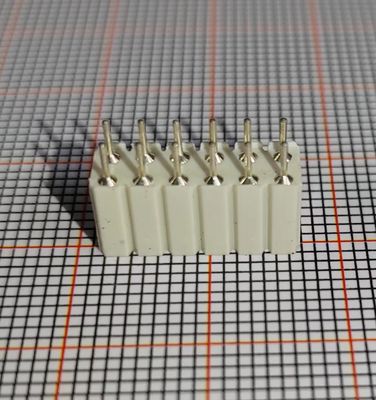

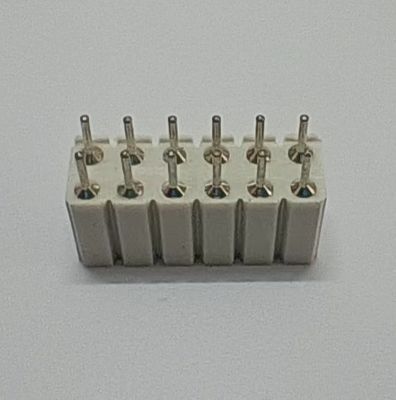

2x6 12 Pin Header Connector IC 2.54 Mm Pitch Female Header Socket

  • 2x6 12 Pin Header Connector IC 2.54 Mm Pitch Female Header Socket
  • 2x6 12 Pin Header Connector IC 2.54 Mm Pitch Female Header Socket
  • 2x6 12 Pin Header Connector IC 2.54 Mm Pitch Female Header Socket
  • 2x6 12 Pin Header Connector IC 2.54 Mm Pitch Female Header Socket
Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.54-2*6P Female
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Catalogue Female Header Rows Double Row
Pitch 2.54mm Plastic Height 7.0mm
Pin Length 10.0mm Jack Diameter 1.27mm
Jack Structure 2*6P Jack Type Round Hole
Jack Direction Top Installation Type In-line
Contact Material Inner Gold And Outer Tin Plastic Material White 6T
High Light

2x6 pin header

,

12 pin header connector IC

,

2.54 mm pin connector
Leave a Message
Product Description

Terastor Round hole socket/Female Header 2.54mm 2*6P
Pin shell: brass, C3604 terminal: copper plated C17200 plating (bright): Tin :2um/80u "nickel 5um/200u pot iron gold :2Pm/80" nickel,081 gold electricity money (inner claw):21m/80U" nickel bottom 0.8u" gold inner claw (6 claw): copper plated, Heat treatment ADAPTS male needle 3:070mm/0.90mm/AQ0635 Flame retardant grade :PPSUL94Y-0 Electrical performance Rated current :3Amps/contact ma contact resistance :≤10mQ/contact insulation resistance :>1000MQat V=100V Working voltage :60VAC/DC Physical performance: average insertion force P0.66:<140g average extraction force @0.66:>25g Mechanical life :min500 Operating temperature range :-40°Cto+105 'C Welding temperature :+255 "C
