2.54mm 1.27 Mm Pitch Female Header Connector Ic 2x5

Place of Origin CHINA
Brand Name Terastor
Certification RoHS
Model Number 2.54-2*5P Female
Minimum Order Quantity 1000 PCS
Price Negotiable
Packaging Details 1000 PCS/Bag
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 100K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Catalogue Female Header Rows Double Row
Pitch 2.54mm Plastic Height 1.9mm
Pin Length 4.85mm Jack Diameter 1.4mm
Jack Structure 2*5P Jack Type Round Hole
Jack Direction Top Installation Type In-line
Contact Material Inner Gold And Outer Tin Plastic Material PPS
Pin Case Brass C3604 Terminal Copper Plated C17200
Electricity (external Tin Plating :2m/80u "nickel,5 M/200u Tin Plating :2μm/801" Nickel,0.8p "gold Plating (inner Claw):2um/80U Flame Retardant Grade PPSUL94V-0
Operating Temperature Range -40°c To+105°C Welding Temperature +255°C
High Light

pin header 2x5 2.54mm

,

1.27 mm female header

,

1.27 mm pitch female connector

Leave a Message
Product Description

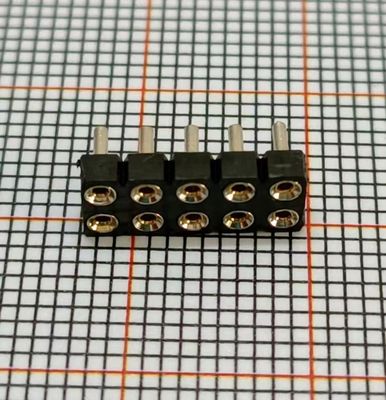

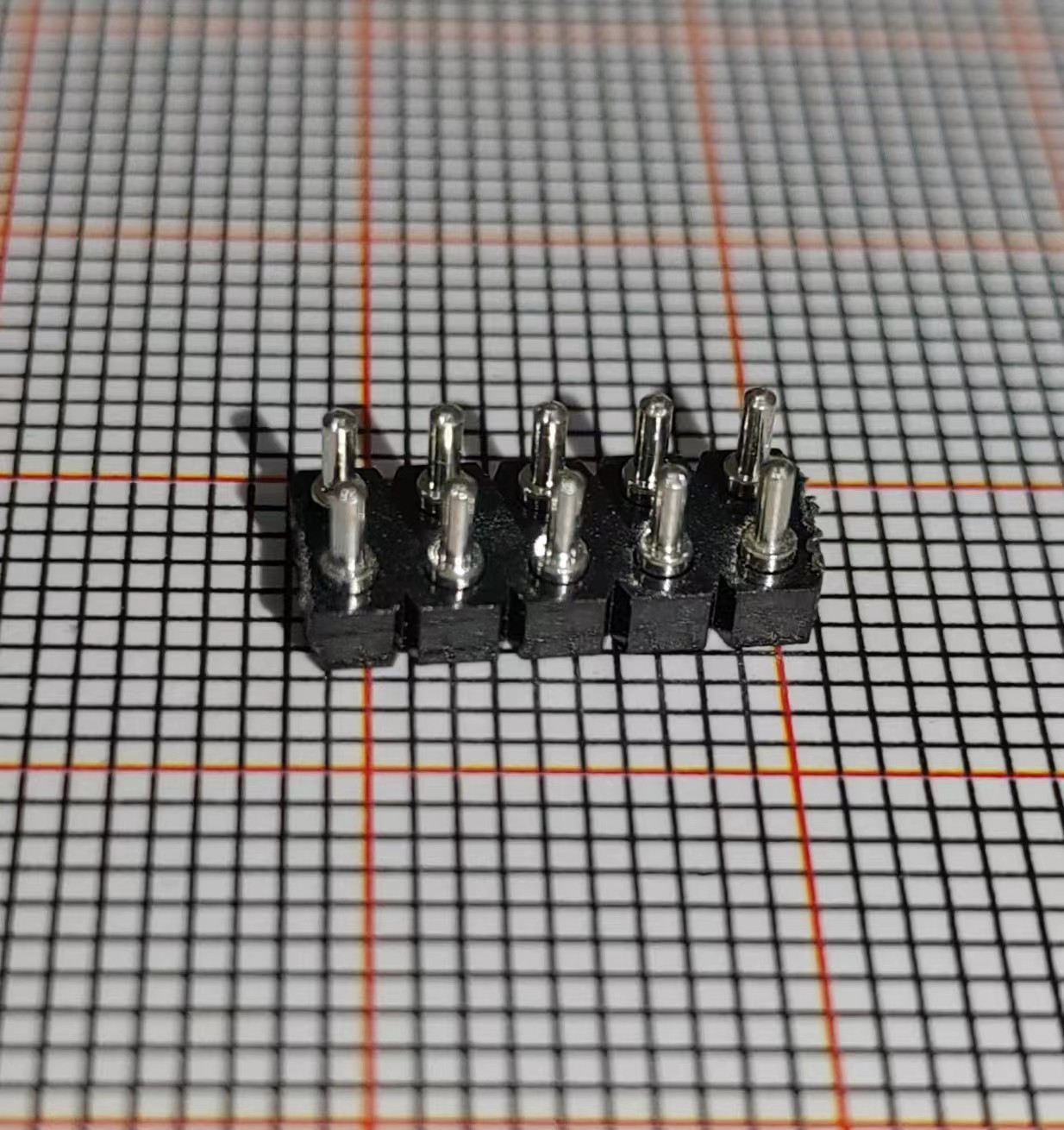

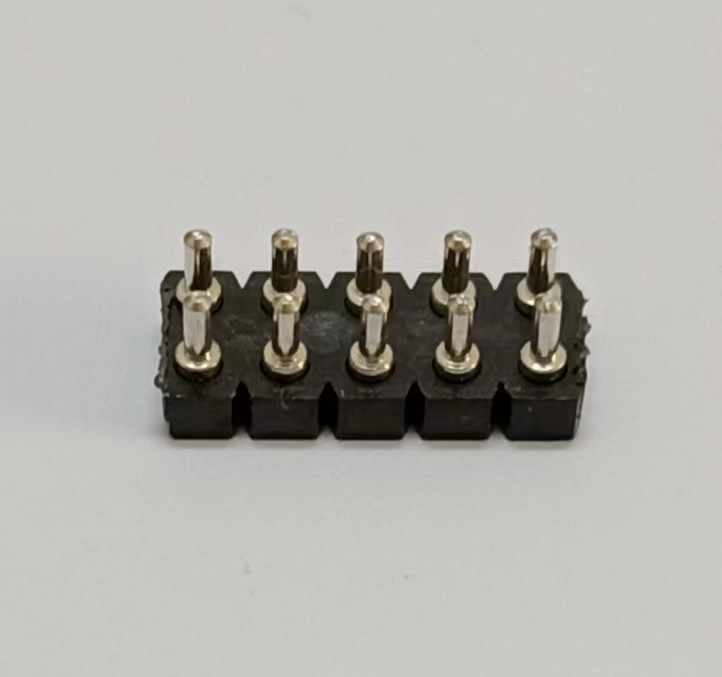

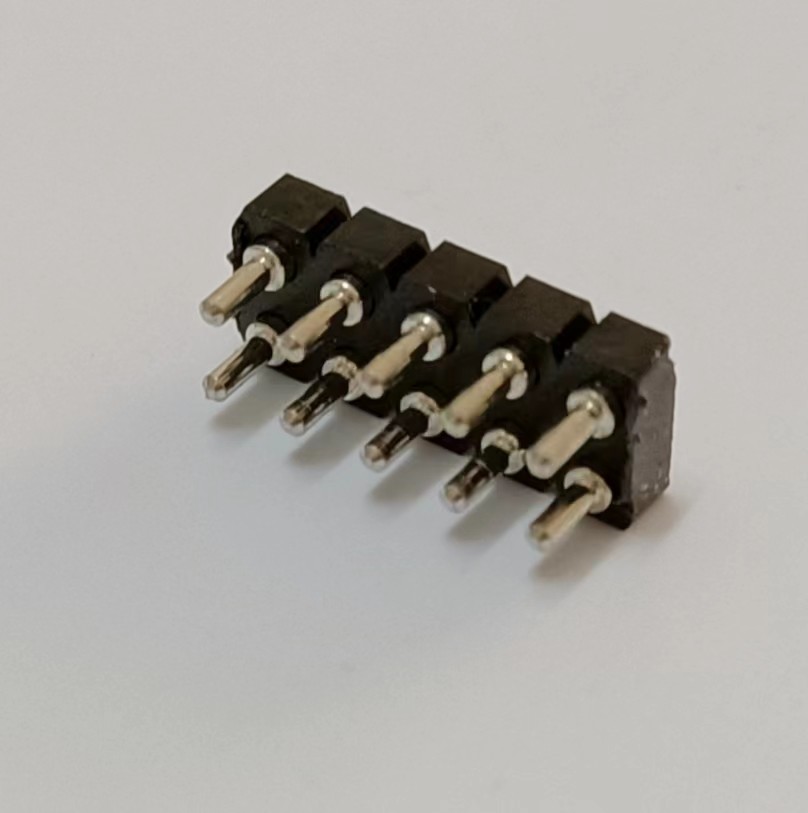

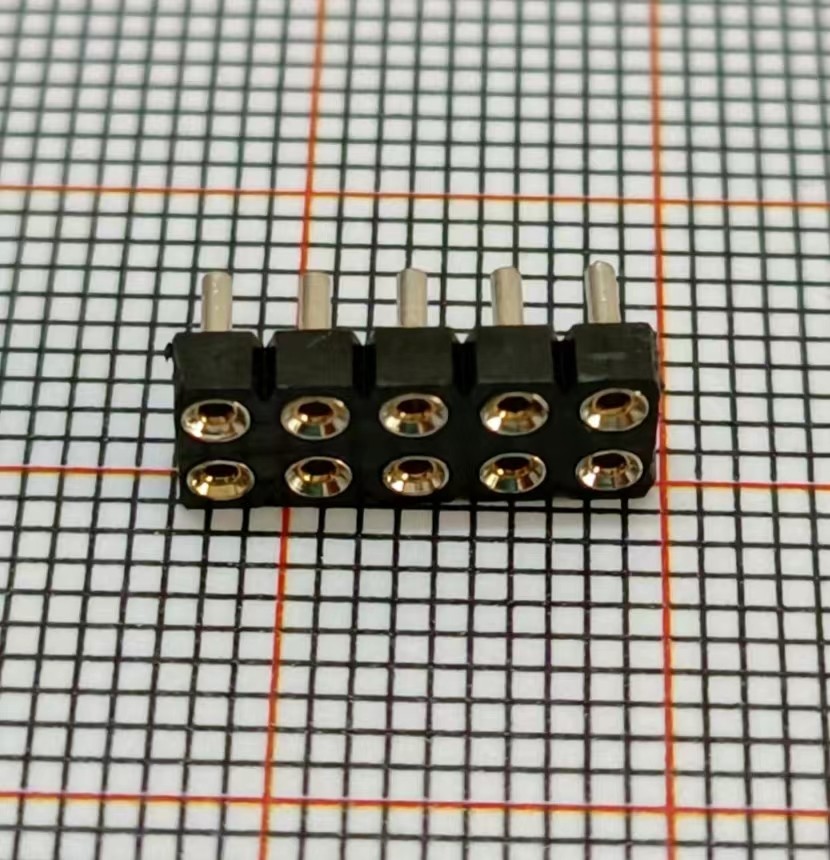

Terastor Round hole socket/Female Header 2.54mm 2*5P

Material:
Pin case: Brass C3604
Terminal: Copper plated C17200
Electricity (external:
Tin plating :2m/80u "nickel,5 m/200u tin plating :2μm/801" nickel,0.8p "gold plating (inner claw):2um/80U" nickel bottom,0.8u gold inner claw (4 claw): copper plating, heat treatment for male needle :0.40mm/0.60mm flame retardant grade :PPSUL94V-0
Electrical performance Rated current :3Amps/contact max. contact resistance :≤10mQ/contact Insulation resistance :>1000MQ at V=100V Working voltage :60VAC/DC
Physical properties: Average insertion force @0.432:<250g average extraction force 90.432:>70g Mechanical life :min 500 Operating temperature range :-40°c tot105 'C Welding temperature :+255°C

2.54mm 1.27 Mm Pitch  Female Header Connector Ic 2x5 0
