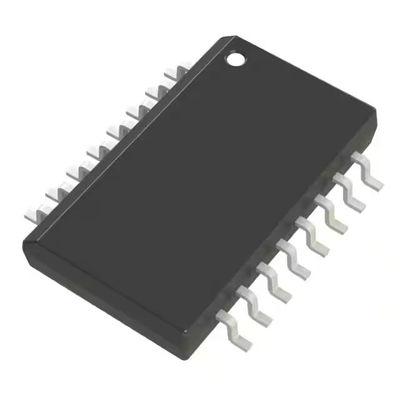

ADM2682EBRIZ-RL7 Digital Isolator 5000Vrms 3 Channel 16Mbps CMTI 16-SOIC Communication Interface Module

Place of Origin Analog Devices Inc.
Brand Name ADI
Certification RoHS
Model Number ADM2682EBRIZ-RL7
Minimum Order Quantity 400 PCS
Price Negotiable
Packaging Details 400 PCS/Tube
Delivery Time 2-3 DAYS
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 6K PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Category Digital Isolators Mfr Analog Devices Inc.
Series ADM2682E Technology Magnetic Coupling
Type RS422, RS485 Number Of Channels 3
Inputs - Side 1/Side 2 2/1 Voltage - Isolation 5000Vrms
Data Rate 16Mbps Common Mode Transient Immunity (Min) 25kV/µs
Propagation Delay TpLH / TpHL (Max) 100ns, 100ns Rise / Fall Time (Typ) 15ns, 15ns (Max)
Voltage - Supply 3.3V, 5V Operating Temperature -40°C ~ 85°C
Package / Case 16-SOIC (0.295", 7.50mm Width)
High Light

ADM2682EBRIZ-RL7 RS422

,

Digital Isolator 5000Vrms

,

Communication Interface Module

Leave a Message
Product Description

ADM2682EBRIZ-RL7 RS422, RS485 Digital Isolator 5000Vrms 3 Channel 16Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)

Description:

The ADM2682E/ADM2687E are fully integrated 5 kV rms signal and power isolated data transceivers

with ±15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines.

The ADM2682E/ADM2687E include an integrated 5 kV rms isolated dc-to-dc power supply that eliminates the

need for an external dc-to-dc isolation block.



Quick Detail:

Manufacturer
Analog Devices Inc.
Manufacturer Product Number
ADM2682EBRIZ-RL7
Description
DGTL ISO 5KV RS422/RS485 16SOIC
Detailed Description
RS422, RS485 Digital Isolator 5000Vrms 3 Channel 16Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)



Product Attributes:

TYPE
DESCRIPTION
Category
Digital Isolators
Mfr
Analog Devices Inc.
Series
isoPower®
Product Status
Active
Technology
Magnetic Coupling
Type
RS422, RS485
Isolated Power
Yes
Number of Channels
3
Inputs - Side 1/Side 2
44958
Channel Type
Unidirectional
Voltage - Isolation
5000Vrms
Common Mode Transient Immunity (Min)
25kV/µs
Data Rate
16Mbps
Propagation Delay tpLH / tpHL (Max)
100ns, 100ns
Rise / Fall Time (Typ)
15ns, 15ns (Max)
Voltage - Supply
3.3V, 5V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width)
Supplier Device Package
16-SOIC
Base Product Number
ADM2682



Additional Resources:

ATTRIBUTE DESCRIPTION
Other Names
ADM2682EBRIZ-RL7-ND
ADM2682EBRIZ-RL7CT
505-ADM2682EBRIZ-RL7DKR
505-ADM2682EBRIZ-RL7CT
ADM2682EBRIZ-RL7TR
ADM2682EBRIZ-RL7DKR-ND
ADM2682EBRIZ-RL7DKR
ADM2682EBRIZ-RL7CT-ND
ADM2682EBRIZ-RL7TR-ND
505-ADM2682EBRIZ-RL7TR
Standard Package 400



Data Picture:https://www.analog.com/media/en/technical-documentation/data-sheets/ADM2682E_2687E.pdf
