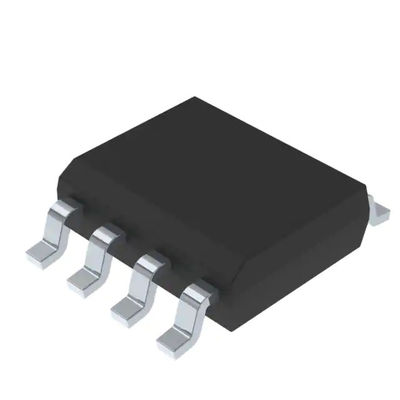

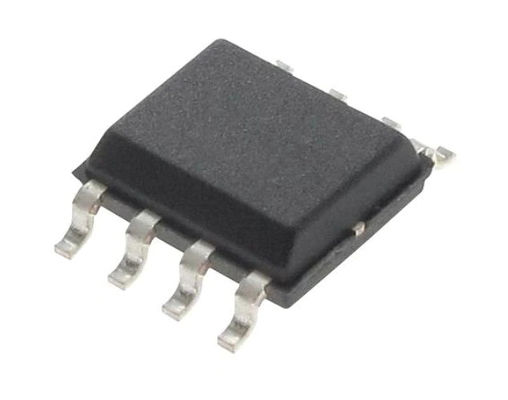

ST25DV04K-IER6S3 STMicroelectronics RFID Transponder IC 13.56MHz ISO 15693 I²C 1.8V 5.5V 8-SOIC 0.154" 3.90mm
| Place of Origin | America |
|---|---|
| Brand Name | ST |
| Certification | RoHS |
| Model Number | ST25DV04K-IER6S3 |
| Minimum Order Quantity | 2500 PCS |
| Price | Negotiable |
| Packaging Details | 2500 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | RFID, RF Access, Monitoring ICs | Mfr | STMicroelectronics |
|---|---|---|---|
| Series | ST25D | Product Status | Active |
| Type | RFID Transponder | Frequency | 13.56MHz |
| Standards | ISO 15693 | Interface | I²C |
| Voltage - Supply | 1.8V ~ 5.5V | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | ||
| High Light | ST25DV04K-IER6S3,RFID Transponder IC,ST25DV04K-IER6S3 STMicroelectronics |
||
Product Description
ST25DV04K-IER6S3 RFID Transponder IC 13.56MHz ISO 15693 I²C 1.8V ~ 5.5V 8-SOIC (0.154", 3.90mm Width)
Features:
I2C interface
●Two-wire I2C serial interface supports 1 MHz protocol
● Single supply voltage: 1.8 to 5.5 V
● Multiple byte programming (up to 256 bytes)
Contactless interface
● Based on ISO/IEC 15693
● NFC Forum Type 5 tag, certified by the NFC Forum
● Supports all ISO/IEC 15693 modulations, coding, sub-carrier modes and data rates
●Custom fast read access up to 53 Kbit/s
● Single and multiple blocks read (same for extended commands)
●Single and multiple (up to 4) blocks write (same for extended commands)
●Internal tuning capacitance: 28.5 pF
Memory
● Up to 64 kbits of EEPROM (depending on version)
●I2C interface accesses bytes
●RF interface accesses blocks of 4 bytes
● Data retention: 40 years
Description:
The ST25DV04K, ST25DV16K and ST25DV64K devices (hereinafter referred collectively to as ST25DVxxx) are
NFC RFID tags offering, respectively 4, 16, and 64 Kbit of electrically erasable programmable memory (EEPROM).
These devices feature two interfaces: the first one is an I2C serial link that can be operated from a DC power supply,
the second one is an RF link activated when the device acts as a contactless memory powered by the received carrier
electromagnetic wave. In I2C mode, the user memory contains up to 512, 2048, or 8192 bytes, which can be split in four
flexible and protectable areas. In RF mode, following ISO/IEC 15693 or NFC Forum Type 5 recommendations, the user
memory contains up to 128, 512, or 2048 blocks of 4 bytes, which can be split in four flexible and protectable areas. The
ST25DVxxx devices offer a fast transfer mode between the RF and contact worlds, thanks to a 256 bytes volatile buffer
(also called Mailbox). In addition, the GPO pin provides data about incoming events, like RF field detection, RF activity
in progress, or mailbox message availability. An energy harvesting feature is also available, when external conditions make
it possible.
Quick Detail:
|
Manufacturer
|
STMicroelectronics
|
|
Manufacturer Product Number
|
ST25DV04K-IER6S3
|
|
Description
|
IC RFID TRANSP 13.56MHZ 8SO
|
|
Detailed Description
|
RFID Transponder IC 13.56MHz ISO 15693 I²C 1.8V ~ 5.5V 8-SOIC (0.154", 3.90mm Width)
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
RFID, RF Access, Monitoring ICs
|
|
Mfr
|
STMicroelectronics
|
|
Series
|
ST25D
|
|
Product Status
|
Active
|
|
Type
|
RFID Transponder
|
|
Frequency
|
13.56MHz
|
|
Standards
|
ISO 15693
|
|
Interface
|
I²C
|
|
Voltage - Supply
|
1.8V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
Supplier Device Package
|
8-SOIC
|
|
Base Product Number
|
ST25
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
497-17123-6
|
|
497-17123-1
|
|
|
497-17123-2
|
|
| Standard Package | 2500 |
Data Picture:https://www.st.com/resource/en/datasheet/st25dv04k.pdf
