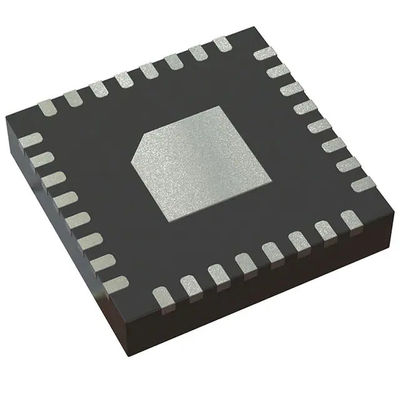

CC1120RHBR RF Transceivers C RF TxRx MCU General ISM 1GHz 274MHz 320MHz 480MHz 960MHz 32-VFQFN Exposed Pad
| Place of Origin | America |
|---|---|
| Brand Name | TI |
| Certification | RoHS |
| Model Number | CC1120RHBR |
| Minimum Order Quantity | 3000 PCS |
| Price | Negotiable |
| Packaging Details | 3000 PCS/Tape |
| Delivery Time | 2-3 DAYS |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 6K PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | RF Transceiver | Mfr | Texas Instruments |
|---|---|---|---|
| Type | TxRx + MCU | RF Family/Standard | General ISM < 1GHz |
| Modulation | 2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK | Frequency | 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz |
| Data Rate (Max) | 200kbps | Power - Output | 16dBm |
| Sensitivity | -127dBm | Memory Size | 4kB ROM, 256B RAM |
| Serial Interfaces | SPI | GPIO | 4 |
| Voltage - Supply | 2V ~ 3.6V | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 32-VFQFN Exposed Pad |
| High Light | RF Transceivers,CC1120RHBR Texas Instruments,cc1120rhbr datasheet |
||
Product Description
CC1120RHBR IC RF TxRx + MCU General ISM < 1GHz 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz 32-VFQFN Exposed Pad
Description:
The CC1120 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power
and low-voltage operation in cost-effective wireless systems. All filters are integrated, thus removing the need for costly
external SAW and IF filters. The device is mainly intended for Industrial, Scientific, and Medical (ISM) applications and
Short Range Device (SRD) frequency bands at 164 to 192 MHz, 274 to 320 MHz, 410 to 480 MHz, and 820 to 960 MHz.
The CC1120 device provides extensive hardware support for packet handling, data buffering, burst transmissions, clear
channel assessment, link quality indication, and wake-on-radio. The main operating parameters of the CC1120 device can
be controlled through an SPI interface. In a typical system, the CC1120 device is used with a microcontroller and only a
few external passive components.
Quick Detail:
|
Manufacturer
|
Texas Instruments
|
|
Manufacturer Product Number
|
CC1120RHBR
|
|
Description
|
IC RF TXRX+MCU ISM<1GHZ 32VFQFN
|
|
Detailed Description
|
IC RF TxRx + MCU General ISM < 1GHz 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz 32-VFQFN Exposed Pad
|
Product Attributes:
|
TYPE
|
DESCRIPTION
|
|
Category
|
RF Transceiver ICs
|
|
Mfr
|
Texas Instruments
|
|
Product Status
|
Active
|
|
Type
|
TxRx + MCU
|
|
RF Family/Standard
|
General ISM < 1GHz
|
|
Modulation
|
2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK
|
|
Frequency
|
164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz
|
|
Data Rate (Max)
|
200kbps
|
|
Power - Output
|
16dBm
|
|
Sensitivity
|
-127dBm
|
|
Memory Size
|
4kB ROM, 256B RAM
|
|
Serial Interfaces
|
SPI
|
|
GPIO
|
4
|
|
Voltage - Supply
|
2V ~ 3.6V
|
|
Current - Receiving
|
17mA ~ 23mA
|
|
Current - Transmitting
|
32mA ~ 54mA
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
32-VFQFN Exposed Pad
|
|
Supplier Device Package
|
32-VQFN (5x5)
|
|
Base Product Number
|
CC1120
|
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Other Names |
296-35667-1
|
|
296-35667-2
|
|
|
-296-35667-1-ND
|
|
|
296-35667-6
|
|
| Standard Package | 3000 |
